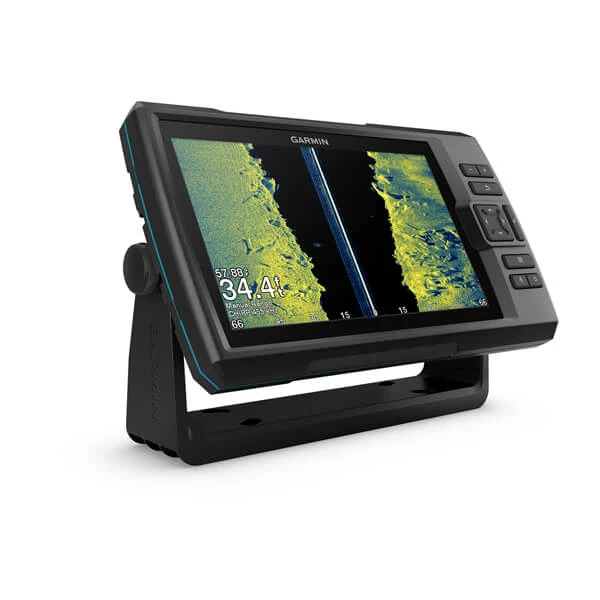

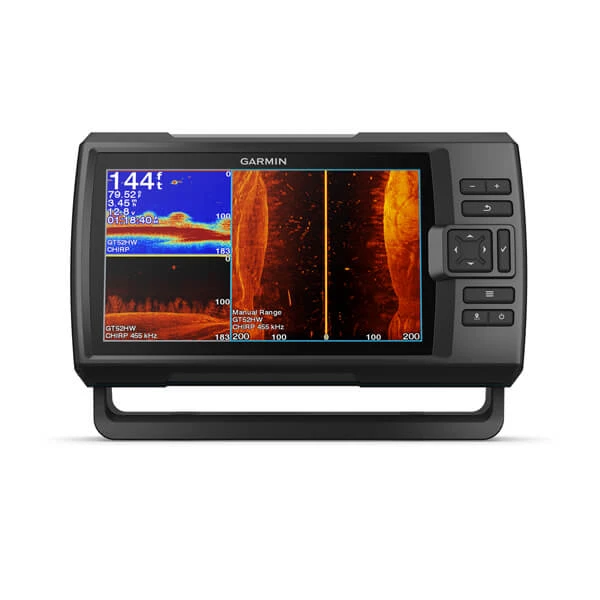

Garmin STRIKER Vivid 9sv CHIRP ClearVu SideVu Fishfinder With GT52HW-TM Transducer

What a view

The Garmin STRIKER Vivid 9sv CHIRP ClearVu SideVu Fishfinder allows you to see fish and structure in maximum detail when you pick your display colour, your location and your sonar for your day on the water. The sonar colour you pick says a lot about your fishing style. Good thing there are 7 new vivid options.

Clear, Colourful Sonar
Choose from 7 new vivid colour options to see fish and structure in maximum contrast and clarity on your 9-inch fishfinder.

Built-In Sonar
Use the included GT52 transducer to get Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars.

Waypoint Marking
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

HIGH-SENSITIVITY GPS
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

Quickdraw Contours
Nobody knows the waters you fish better than you. With the STRIKER Vivid 9sv fishfinder, you can store up to 2 million acres of maps with 1-foot contours.

Included Hardware
The STRIKER Vivid 9sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

Wi-Fi Connectivity
Connect to the ActiveCaptain app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw Community.

Garmin STRIKER Vivid 9sv CHIRP ClearVu SideVu Fishfinder Features:

• Dual-Frequency (50/200 Khz) Sonar Capable
• Dual-Beam (77/200 Khz) Sonar Capable
• Frequencies Supported
• Bottom Lock (shows return from the bottom up)
• Water Temperature Log And Graph
• Fishfinder Features
• Split-Screen Zoom
• Ultrascroll (displays fish targets at higher boat speeds)
• Fish Symbol Id (helps identify fish targets)
• Autogain Technology (minimises clutter, maximizes targets)
• Adjustable Depth Line (measures depth of underwater objects)
• A-Scope (real time display of fish passing through transducer beam)
• Water Temperature Sensor Included

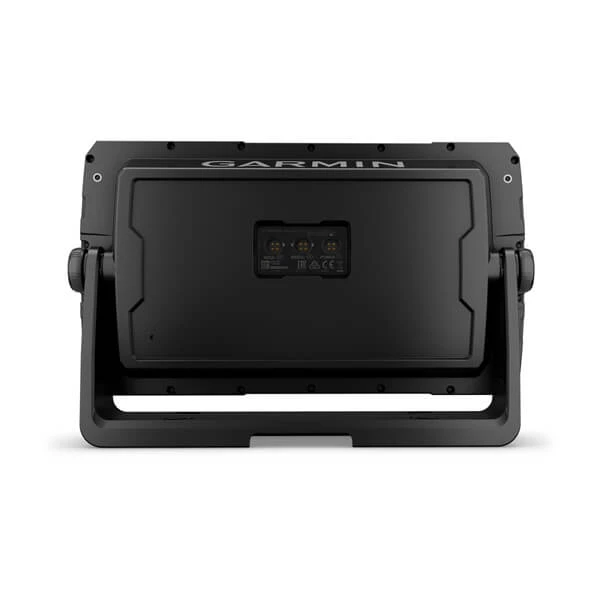

• One 4-pin transducer port
• One 4-pin SideVu transducer port
• Wireless Connectivity: Yes
• Quickdraw Contours
• Integrated GPS
• Mark Waypoints
• Course over Ground (COG)
• Current draw @ 12V: 0.75A

Garmin STRIKER Vivid 9sv CHIRP ClearVu SideVu Fishfinder Specifications:

General

• Dimension: 11.1″ x 6.5″ x 2.4″ (28.2 x 16.5 x 6.0 cm)
• Input: Keyed
• Display Size: 4.4″ x 7.8″ (11.2 x 19.8 cm); 9.0″ diag (22.8 cm)
• Display Resolution: 800 x 480 pixels
• Display Type: WVGA colour
• Weight: 2.4 lbs (1.1 kg)
• Waterproof: IPX7
• Mounting Options: Flush, tilt/swivel

Maps and Memory

• Waypoints/favorites/locations: 5000
• Track points: 50,000
• Tracks: 50
• Navigation Routes: 100

Sensors and Maps

• Has built-in receiver: Yes
• Receiver Traditional: 50/77/200 kHz, CHIRP (mid and high), ClearVü and SideVü 260/455/800 kHz
• GPS: Yes
• Supports WAAS: Yes
• Built-in Auto Guidance: Yes
• Garmin Quickdraw Contours: Yes

Sonar Features and Specifications

• Displays sonar: Yes
• Traditional sonar (dual frequency/beam): Built-in
• ClearVü: Yes
• (Sounder) SideVü: Yes
• Frequency: Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz
• Bottom Lock (shows return from the bottom up): Yes
• Water Temperature Log: Yes

Connections

• 4-pin transducer ports: 2
• Garmin Wi-Fi network (local connection): Yes

Electrical Features

• Power Input: 12 to 20 Vdc
• Typical current draw: 0.75 A
• Max current draw: 1.5 A
• Power Consumption: 9.0
• Transmit power: 500 W (RMS)

Fishfinder Features

• Split-screen zoom: Yes
• Fish Symbol ID (helps identify fish targets): Yes
• Autogain technology (minimises clutter; maximises targets): Yes
• Adjustable depth line (measures depth of underwater objects): Yes
• A-scope (real time display of fish passing through transducer beam): Yes
• Water temperature sensor included: Yes
• Depth range shading: Yes

What’s in the box:

• STRIKER Vivid 9sv
• GT52HW-TM transducer
• Power/data cable
• 12-pin to dual 4-pin transducer adapter cable
• Tilt mount
• Hardware
• Garmin bumper sticker
• Documentation
