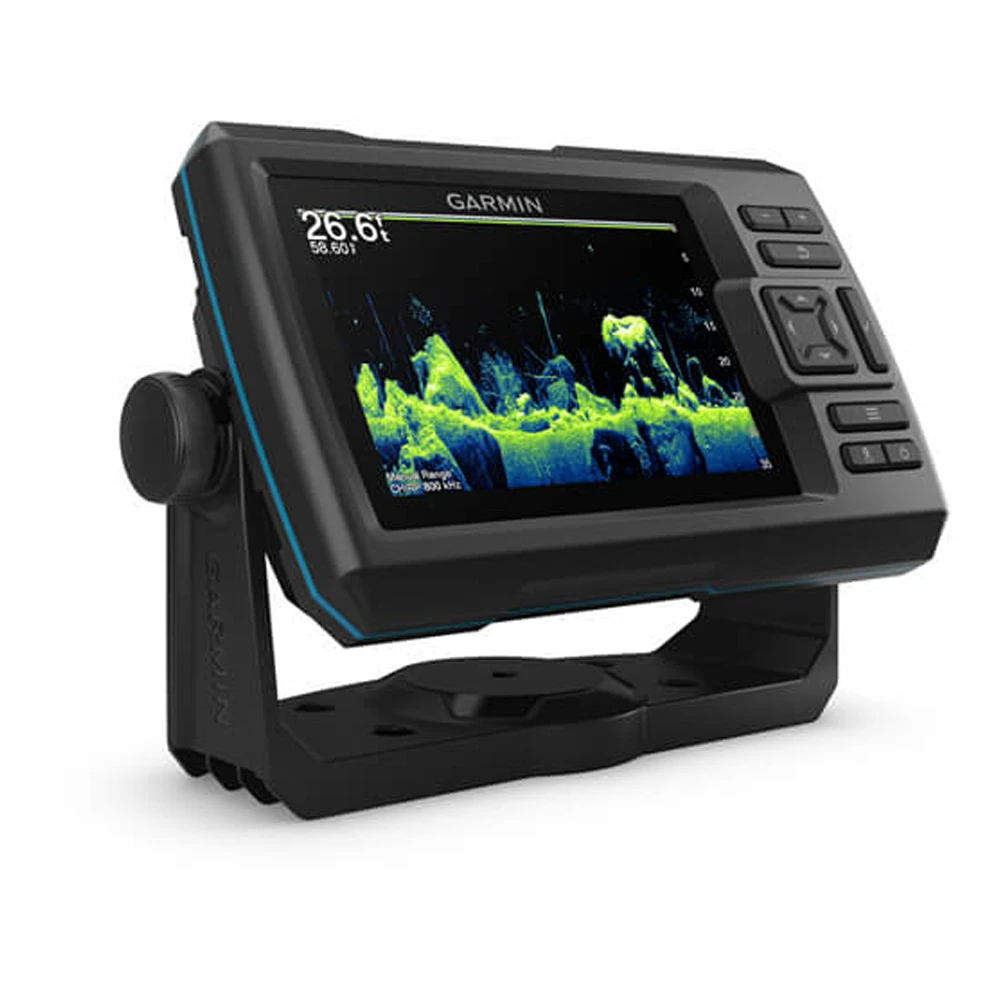

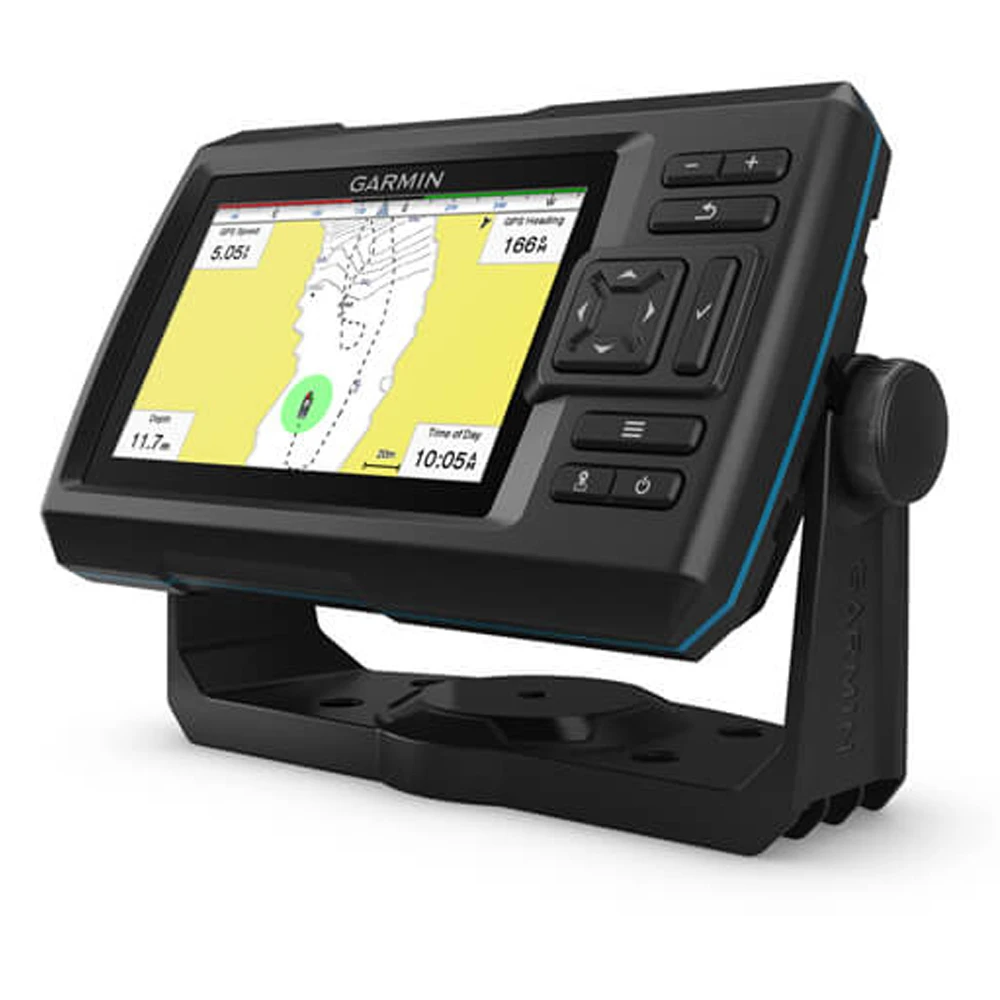

Garmin STRIKER Vivid 5cv CHIRP ClearVu Fishfinder With GT20-TM Transducer

A new way to see what’s underwater

See fish and structure in maximum detail when you pick your display colour, your location and your sonar for your day on the water with the Garmin STRIKER Vivid 5cv CHIRP ClearVu Fishfinder.

Clear, Colourful Sonar
Choose from 7 new vivid colour options to see fish and structure in maximum contrast and clarity on your 5″ fishfinder.

Built-In Sonar
Use the included GT20 transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar.

Waypoint Marking
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

High-Sensitivity GPS
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

Quickdraw Contours
Nobody knows the waters you fish better than you. With the STRIKER Vivid 5cv fishfinder, you can store up to 2 million acres of maps with 1’ contours1.

Included hardware
The STRIKER Vivid 5cv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

Garmin STRIKER Vivid 5cv CHIRP ClearVu Fishfinder Features:

• Dual-Frequency (50/200 Khz) Sonar Capable
• Dual-Beam (77/200 Khz) Sonar Capable
• Frequencies Supported
• Bottom Lock (Shows Return From The Bottom Up)
• Water Temperature Log And Graph
• Fishfinder Features
• Split-Screen Zoom
• Ultrascroll (Displays Fish Targets At Higher Boat Speeds)
• Fish Symbol Id (Helps Identify Fish Targets)
• Autogain Technology (Minimizes Clutter, Maximizes Targets)
• Adjustable Depth Line (Measures Depth Of Underwater Objects)
• A-Scope (Real Time Display Of Fish Passing Through Transducer Beam)
• Water Temperature Sensor Included
• One 4-pin transducer port
• Quickdraw Contours
• Integrated GPS
• Mark Waypoints
• Course over Ground (COG)
• Current draw @ 12V: 0.40A

Garmin STRIKER Vivid 5cv CHIRP ClearVu Fishfinder Specifications:

General

• Dimension: 18.8 x 11.6 x 5.4 cm
• Display resolution: 800 x 480 pixels
• Display type: WVGA colour
• Weight: 0.5 kg
• Waterproof: IPX7
• Transmit power: 500 W (RMS)

Sonar Features and Specifications

• Dual Frequency Sonar: Yes
• Dual Beam Sonar: Yes
• Frequency: Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz
• Bottom Lock: Yes
• Water Temperature Log: Yes

Fishfinder Features

• Split-screen zoom
• Ultrascroll
• Fish Symbol ID
• AutoGain Technology
• Adjustable depth line
• A-scope
• Water temperature sensor included

What’s in the Box:

• STRIKER Vivid 5cv
• GT20-TM transducer
• Power/data cable
• Tilt/swivel mount
• Hardware
• Garmin bumper sticker
• Documentation
