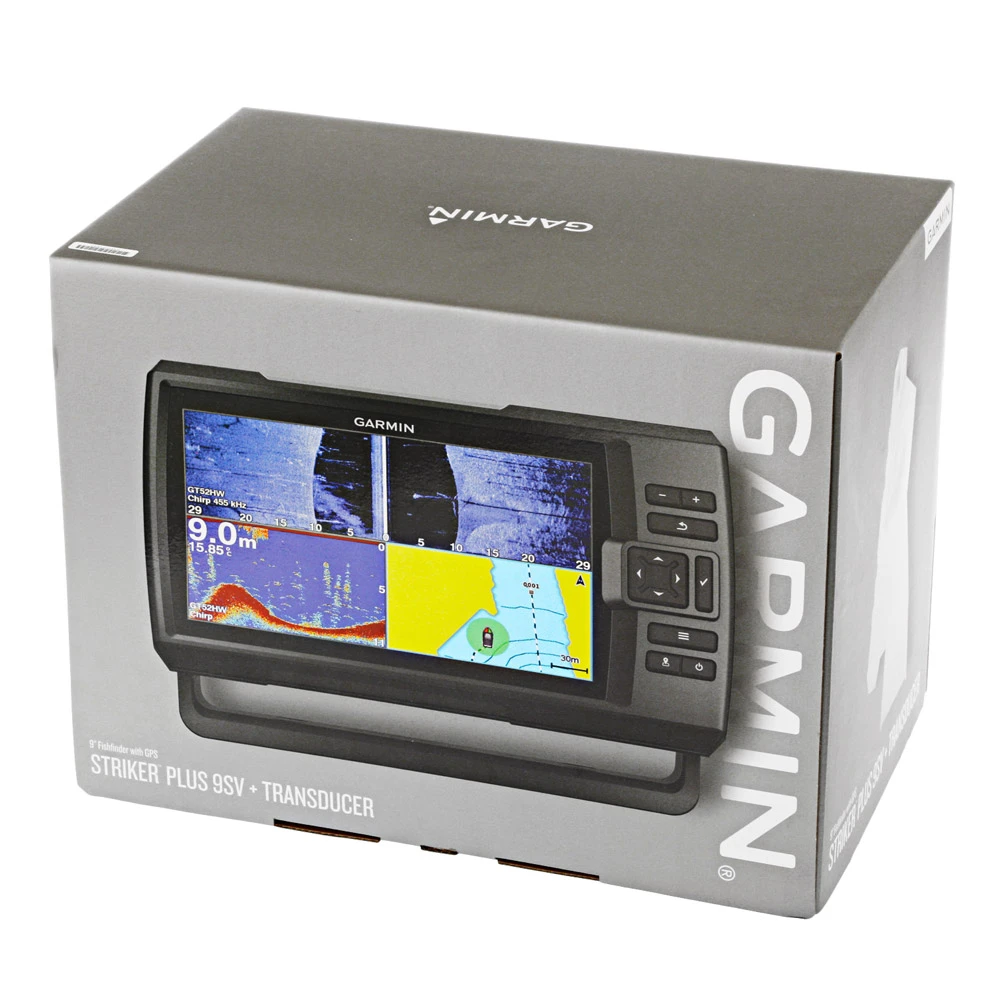

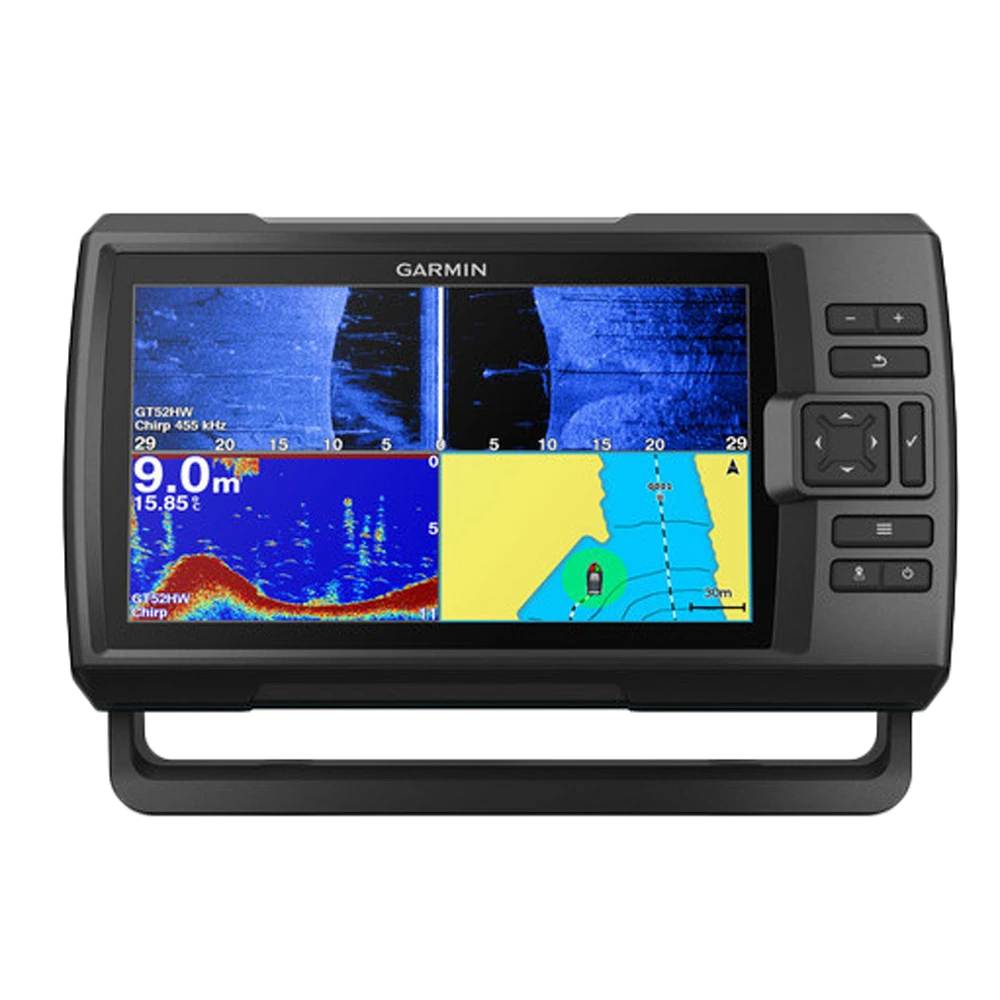

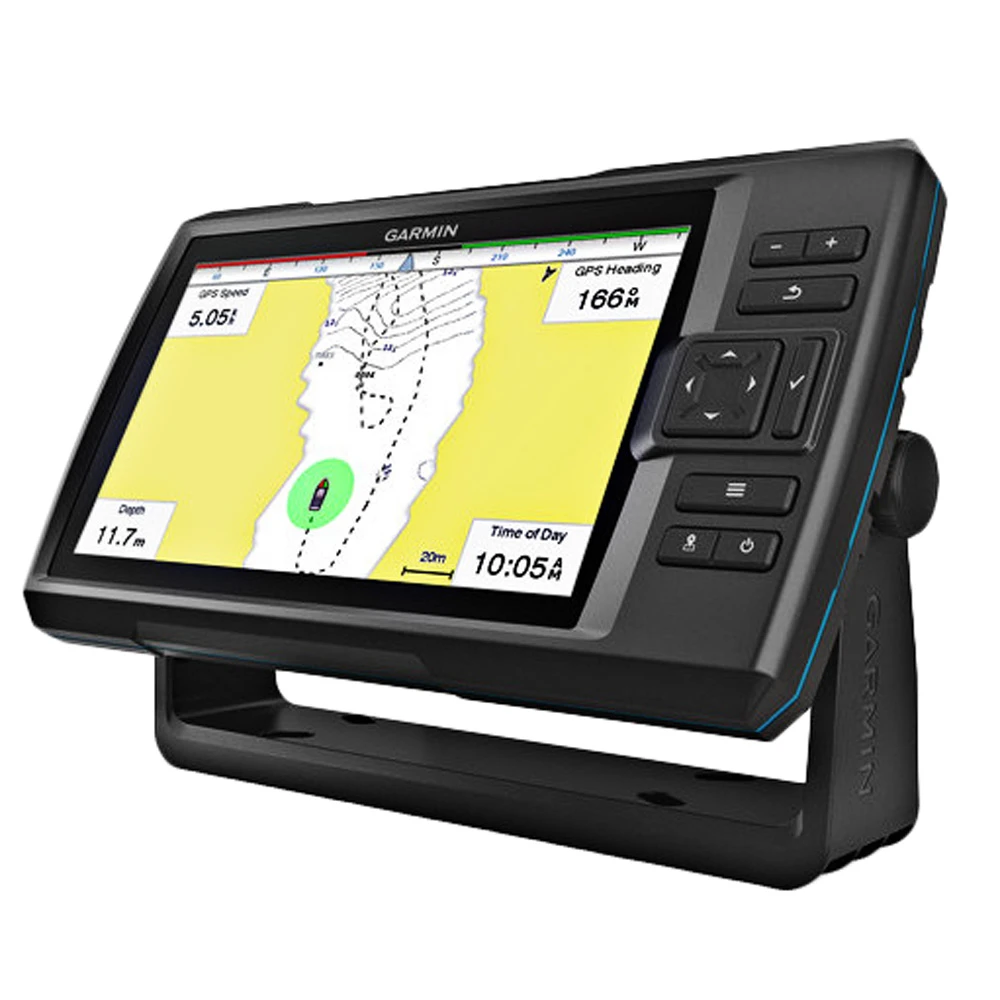

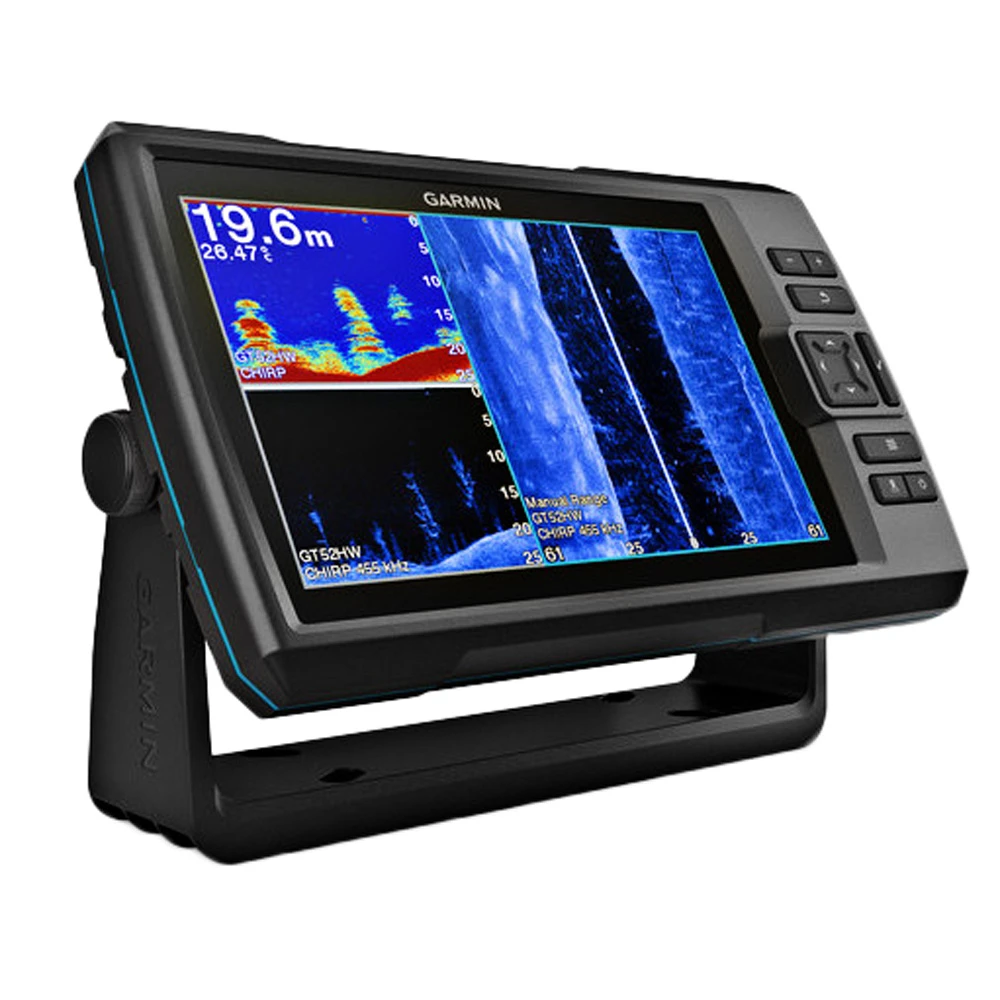

Garmin STRIKER Plus 9sv CHIRP ClearVu Fishfinder With GPS And GT52HW-TM Transducer

Find fish, mark hot spots, return to them later

Finding fish is now easier than ever with the new range of STRIKER
Plus fishfinders. The Garmin STRIKER Plus 9sv
Fishfinder has a 9-inch display – making it bigger,
brighter and easier to read than previous versions! It also
features Garmin’s revolutionary Quickdraw Contours map drawing
software, which stores up to 2 million acres of content with 1’
contours. And what’s more Garmin’s CHIRP traditional sonar provides
crystal-clear images with remarkable target separation. Get nearly
photographic images of what passes below and beside your boat with
CHIRP ClearVü and CHIRP SideVü scanning sonars.

The Garmin STRIKER Plus 9sv Fishfinder makes
fishing a breeze, and it’s built to work in any environment. Its
bright, sunlight-readable display gives you a clear view of what’s
below your boat, even on the brightest days. And the larger screen
gives you a better view of what’s happening below the boat. The
intuitive user interface makes it simple to navigate to whatever
feature you need, so you’re ready for anything on the water.

Garmin Quickdraw Contours
Nobody knows the waters you fish better than you and your fellow
fishermen. While you’re trolling the shorelines and the depths,
Quickdraw Contours mapping software creates HD fishing maps of the
places you’ve been. No special knowledge is required. STRIKER Plus
9sv can now store up to 2 million acres of your Quickdraw Contours
maps with 1’ contours.

ActiveCaptain App
STRIKER Plus 9sv features built-in Wi-Fi, so you
can pair with the free, all-in-one ActiveCaptain app. Once paired,
you can get smart notifications¹ right on your screen. You can also
access the Quickdraw Contours Community to share some of your new
maps or download new data from the community. You’ll even be able
to get updates for your fishfinder using the Wi-Fi connection and
the ActiveCaptain app.

Clear Scanning Sonar Images
STRIKER Plus 9sv supports Garmin ClearVü scanning
sonar, which gives you a nearly photographic, wide image of what
passes below your boat. It also supports Garmin SideVü scanning
sonar for a crisp, clear view of what lies off to each side of your
boat, so you can clearly see structure, submerged objects and fish.
Garmin CHIRP traditional sonar provides clear fish arches and
remarkable target separation.

GPS Fishfinder
The built-in, high-sensitivity GPS finds and maintains your
position anywhere you go on the water. The GPS allows you to mark
waypoints for different locations. So, if the fish are biting in 1
spot, you can mark it, and return to it on your next trip. Mark
docks, boat ramps and other locations on the lake, and create
routes back to them for your next trip. GPS also allows
STRIKER Plus 9sv to show your speed on screen, so
you can be sure you’re trolling at the right speed for the lure
you’re using or in wake-controlled areas.

GT52HW-TM Transducer
The Garmin GT transducers have a centre element which allows for
improved depth performance over a CV transducer, but a narrower
coverage area that limits the display of returns to the side of the
boat.

Garmin STRIKER Plus 9sv Fishfinder Features:

• Includes transducer for built-in Garmin CHIRP traditional sonar
  plus CHIRP ClearVü and CHIRP SideVü scanning sonars
• Built-in Quickdraw Contours mapping software lets you create
  and store maps with 1’ contours for up to 2 million acres
• Built-in Wi-Fi for access to ActiveCaptain app so you can
  receive smart notifications¹, access Quickdraw Contours Community
  and transfer waypoints and software update notifications
• Built-in GPS lets you mark waypoints, create routes and view
  boat’s speed
• Bright, sunlight-readable 9” display and intuitive user
  interface
• Traditional CHIRP: Good for displaying fish arches.
• ClearVü: Excellent for displaying fish and structure below your
  boat.
• SideVü: Excellent for displaying fish and structure to the
  sides of your boat.

Garmin STRIKER Plus 9sv Fishfinder
Specifications:
General

• Physical dimensions: 11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0
  cm)
• Weight: 2.4 lbs (1.1 kg)
• Water rating: IPX7
• Display type: WVGA color
• Display resolution: 800 x 480 pixels
• Wireless Connectivity: Yes
• Quickdraw Contours
• Integrated GPS
• Mark Waypoints
• Course over Ground (COG)
• Current draw @ 12V: 0.75A

Sonar

• Dual-frequency (50/200 kHz) sonar capable
• Dual-beam (77/200 kHz) sonar capable
• Frequencies supported:
  Traditional: 50/77/200 kHz
  CHIRP (mid and high)
  ClearVü and SideVü 260/455/800 kHz
• Transmit power: 500 W (RMS)
• Bottom lock (shows return from the bottom up)
• Water temperature log and graph

Fishfinder

• Split-screen zoom
• Ultrascroll (displays fish targets at higher boat
  speeds)
• Fish Symbol ID (helps identify fish targets)
• AutoGain Technology (minimises clutter, maximises
  targets)
• Adjustable depth line (measures depth of underwater
  objects)
• A-scope (real time display of fish passing through transducer
  beam)
• Water temperature sensor included

What’s Included:

• STRIKER Plus 9sv Fishfinder
• GT52HW-TM Transducer
• Power/data cable
• 12-pin to dual 4-pin transducer adapter cable
• Tilt mount
• Hardware
• Garmin bumper sticker
• Documentation
