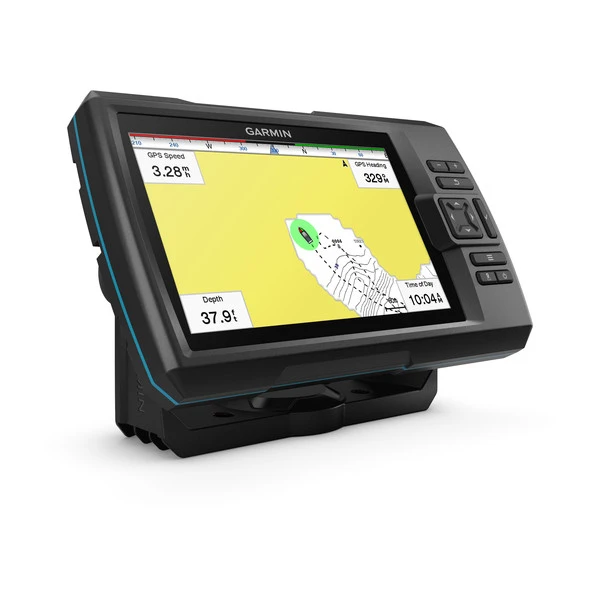

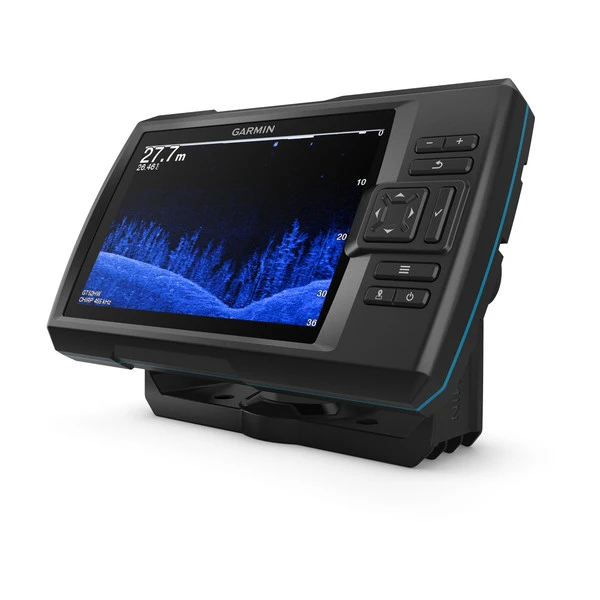

Garmin STRIKER Plus 7cv CHIRP ClearVu Fishfinder With GPS And GT20-TM Transducer

Find fish, mark hot spots, return to them later

Finding fish is now easier than ever with the new range of STRIKER
Plus fishfinders. The Garmin STRIKER Plus 7cv CHIRP ClearVu
Fishfinder with GPS has an easy-to-read 7-inch display and
features Garmin’s revolutionary Quickdraw Contours map drawing
software, which stores up to 2 million acres of content with 1’
contours. And what’s more Garmin’s CHIRP traditional sonar provides
remarkable target separation, and Garmin CHIRP ClearVü scanning
sonar shows nearly photographic images of what passes below your
boat.

The Garmin STRIKER Plus 7cv Fishfinder makes
fishing a breeze, and it’s built to work in any environment. Its
bright, sunlight-readable display gives you a clear view of what’s
below your boat, even on the brightest days. And the larger screen
gives you a better view of what’s happening below the boat. The
intuitive user interface makes it simple to navigate to whatever
feature you need, so you’re ready for anything on the water.

Garmin Quickdraw Contours
Nobody knows the waters you fish better than you and your fellow
fishermen. While you’re trolling the shorelines and the depths,
Quickdraw Contours mapping software creates HD fishing maps of the
places you’ve been. No special knowledge is required. STRIKER Plus
7cv can now store up to 2 million acres of your Quickdraw Contours
maps with 1’ contours.

ActiveCaptain App
STRIKER Plus 7cv features built-in Wi-Fi, so you
can pair with the free, all-in-one ActiveCaptain app. Once paired,
you can get smart notifications¹ right on your screen. You can also
access the Quickdraw Contours Community to share some of your new
maps or download new data from the community. You’ll even be able
to get updates for your fishfinder using the Wi-Fi connection and
the ActiveCaptain app.

CHIRP ClearVü Clarity
The STRIKER Plus 7cv Fishfinder includes Garmin
CHIRP technology combined with Garmin ClearVü scanning sonar for a
nearly photographic, wide image of what passes below your boat. You
clearly see structure, submerged objects and fish. Paired with
Garmin CHIRP traditional sonar for remarkable target separation,
this transducer will help you catch more fish.

GPS Fishfinder
The built-in, high-sensitivity GPS finds and maintains your
position anywhere you go on the water. The GPS allows you to mark
waypoints for different locations. So, if the fish are biting in 1
spot, you can mark it, and return to it on your next trip. Mark
docks, boat ramps and other locations on the lake, and create
routes back to them for your next trip.

GPS also allows STRIKER Plus 7cv to show your
speed on screen, so you can be sure you’re trolling at the right
speed for the lure you’re using or in wake-controlled areas.

GT20-TM Transducer
The Garmin GT transducers have a centre element which allows for
improved depth performance over a CV transducer, but a narrower
coverage area that limits the display of returns to the side of the
boat.

Garmin STRIKER Plus 7cv CHIRP ClearVu Fishfinder with GPS
and CV20-TM Transducer Features:

• Includes transducer for built-in Garmin CHIRP traditional sonar
  plus CHIRP ClearVü scanning sonar
• Built-in Garmin Quickdraw Contours mapping software lets you
  create and store maps with 1’ contours for up to 2 million
  acres
• Built-in Wi-Fi for access to ActiveCaptain app so you can
  receive smart notifications, access Quickdraw Contours Community
  and transfer waypoints and software update notifications
• Built-in GPS lets you mark waypoints, create routes and view
  boat’s speed
• Bright, sunlight-readable 7” display and intuitive user
  interface
• Traditional CHIRP: Good for displaying fish arches
• ClearVü: Excellent for displaying fish and structure below your
  boat
• SideVü: Excellent for displaying fish and structure to the
  sides of your boat

Garmin STRIKER Plus 7cv CHIRP ClearVu Fishfinder with GPS
and CV20-TM Transducer Specifications:

General

• Physical dimensions: 9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8
  cm)
• Weight: 1.7 lbs (0.8 kg)
• Water rating: IPX7
• Display type: WVGA color
• Display resolution: 800 x 480 pixels
• Wireless Connectivity: Yes
• Quickdraw Contours
• Integrated GPS
• Mark Waypoints
• Course over Ground (COG)
• Current draw @ 12V: 0.55A

Sonar

• Dual-frequency (50/200 kHz) sonar capable
• Dual-beam (77/200 kHz) sonar capable
• Frequencies supported:
  Traditional: 50/77/200 kHz
  CHIRP (mid and high)
  ClearVü and SideVü 260/455/800 kHz
• Transmit power: 500 W (RMS)
• Bottom lock (shows return from the bottom up)
• Water temperature log and graph

Fishfinder

• Split-screen zoom
• Ultrascroll (displays fish targets at higher boat
  speeds)
• Fish Symbol ID (helps identify fish targets)
• AutoGain Technology (minimises clutter, maximises
  targets)
• Adjustable depth line (measures depth of underwater
  objects)
• A-scope (real time display of fish passing through transducer
  beam)
• Water temperature sensor included

What’s in the Box:

• STRIKER Plus 7cv Fishfinder
• GT20-TM Transducer
• Power/data cable
• Tilt/swivel mount
• Hardware
• Garmin bumper sticker
• Documentation

Note: Garmin STRIKER Plus 7cv is a fishfinder
unit only and does not have a chart card option.
