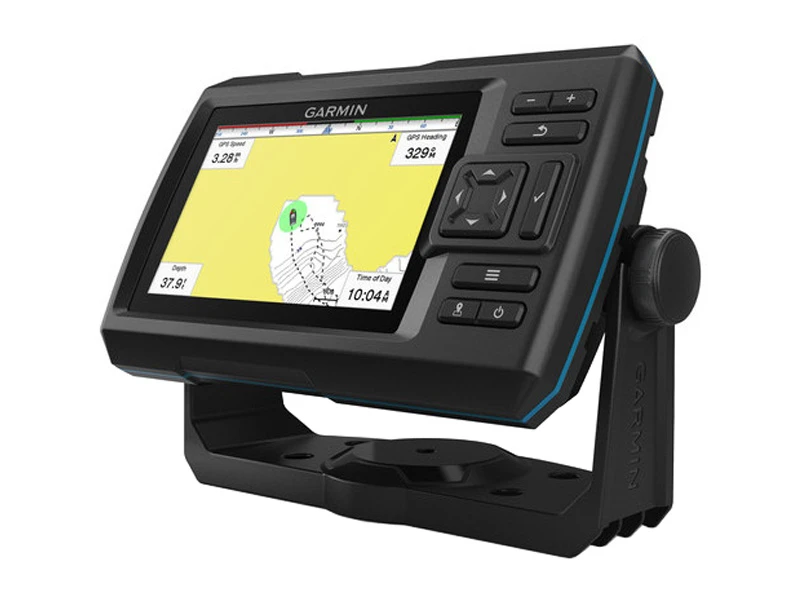

Garmin STRIKER Plus 5cv CHIRP ClearVu Fishfinder With GPS And CV20-TM Transducer

Make fishing and tracking a breeze

The Garmin STRIKER Plus 5cv CHIRP ClearVu Fishfinder with
GPS with a bright 5″ display and built-in GPS features
Garmin CHIRP traditional sonar, Garmin CHIRP ClearVü scanning sonar
and Quickdraw Contours map drawing software, which stores up to 2
million acres of content with 1′ contours. The built-in GPS lets
you mark and navigate to waypoints and shows your boat’s speed.

Garmin Quickdraw Contours
Nobody knows the waters you fish better than you and your fellow
fishermen. While you are trolling the shorelines and the depths,
Quickdraw Contours mapping software creates HD fishing maps of the
places you’ve been. No special knowledge is required. STRIKER Plus
5cv can now store up to 2 million acres of your Quickdraw Contours
maps with 1′ contours.

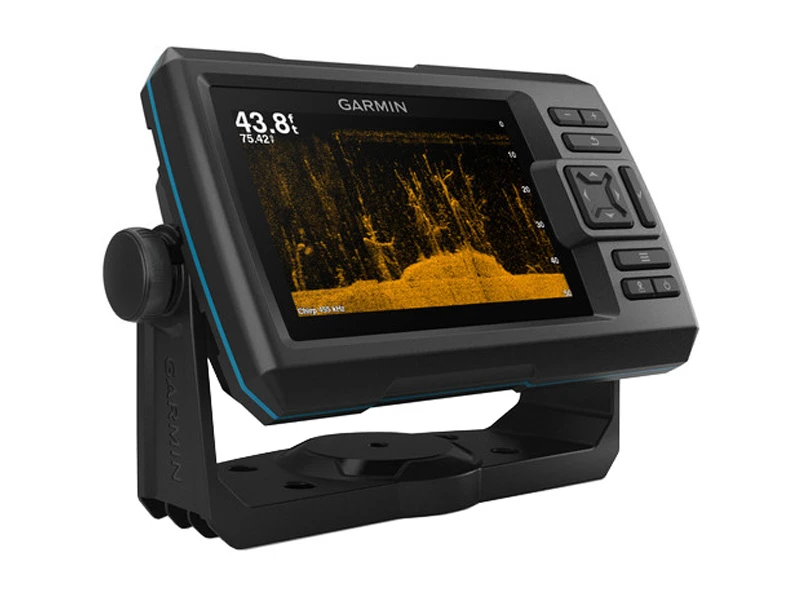

CHIRP ClearVü Clarity
The STRIKER Plus 5cv fishfinder includes Garmin CHIRP technology
combined with Garmin ClearVü scanning sonar for a nearly
photographic, wide image of what passes below your boat. You
clearly see structure, submerged objects and fish. Paired with
Garmin CHIRP traditional sonar for remarkable target separation,
this transducer will help you catch more fish.

GPS Fishfinder
The built-in, high-sensitivity GPS finds and maintains your
position anywhere you go on the water. The GPS allows you to mark
waypoints for different locations. So, if the fish are biting in 1
spot, you can mark it, and return to it on your next trip. Mark
docks, boat ramps and other locations on the lake, and create
routes back to them for your next trip.

GPS also allows STRIKER Plus 5cv to show your speed on screen, so
you can be sure you’re trolling at the right speed for the lure
you’re using or in wake-controlled areas.

Built for You
The STRIKER Plus 5cv fishfinder makes fishing a breeze, and it’s
built to work in any environment. The bright, sunlight-readable
display gives you a clear view of what is below your boat, even on
the brightest days. And the larger screen gives you a better view
of what is happening below the boat. The intuitive user interface
makes it simple to navigate to whatever feature you need, so you
are ready for anything on the water.

CV20-TM Transducer
The Garmin CV transducers do not have a centre element but do have
two side-facing elements, and therefore, offer better coverage to
the sides of the boat. The area directly beneath the boat is
covered by the combination of these two elements and will work in
waters down to 250 feet deep, in ideal conditions. This technique
has been proven in the industry to deliver clear sonar pictures
with full coverage under the boat, and the Garmin CV transducers do
just that.

Garmin STRIKER Plus 5cv CHIRP ClearVu Fishfinder with GPS
Features:

• Includes transducer for built-in Garmin CHIRP traditional sonar
  plus CHIRP ClearVü scanning sonar
• Built-in Garmin Quickdraw Contours mapping software lets you
  create and store maps with 1’ contours for up to 2 million
  acres
• Built-in GPS lets you mark waypoints, create routes and view
  boat’s speed
• Bright, sunlight-readable 5” display and intuitive user
  interface
• Rugged design for every fishing environment

Garmin STRIKER Plus 5cv CHIRP ClearVu Fishfinder with GPS
Specifications:

General

• Physical dimensions: 7.4’’ x 4.5’’ x 2.1’’ (18.8 x 11.6 x 5.4
  cm)
  Weight: 1.0 lb (0.5 kg)
  Water rating: IPX7
  Display type: WVGA colour
  Display resolution: 800 x 480 pixels

Sonar Features & Specifications

• Dual-frequency (50/200 kHz) sonar capable
• Dual-beam (77/200 kHz) sonar capable
• Frequencies supported:
  Traditional: 50/77/200 kHz
  CHIRP (mid and high)
  ClearVü 260/455/800 kHz
• Transmit power: 500 W (RMS)
• Bottom lock (shows return from the bottom up)
• Water temperature log and graph

Fishfinder Features

• Split-screen zoom
• Ultrascroll (displays fish targets at higher boat
  speeds)
• Fish Symbol ID (helps identify fish targets)
• AutoGain Technology (minimises clutter, maximises
  targets)
• Adjustable depth line (measures depth of underwater
  objects)
• A-scope (real time display of fish passing through transducer
  beam)
• Water temperature sensor included

Additional:

• Quickdraw Contours
• Integrated GPS
• Mark Waypoints
• Course over Ground (COG)
• Current draw @ 12V: 0.40A

What’s in the box:

• STRIKER Plus 5cv Fishfinder
• CV20-TM Transducer
• Power/data cable
• Tilt/swivel mount
• Hardware
• Garmin bumper sticker
• Documentation
