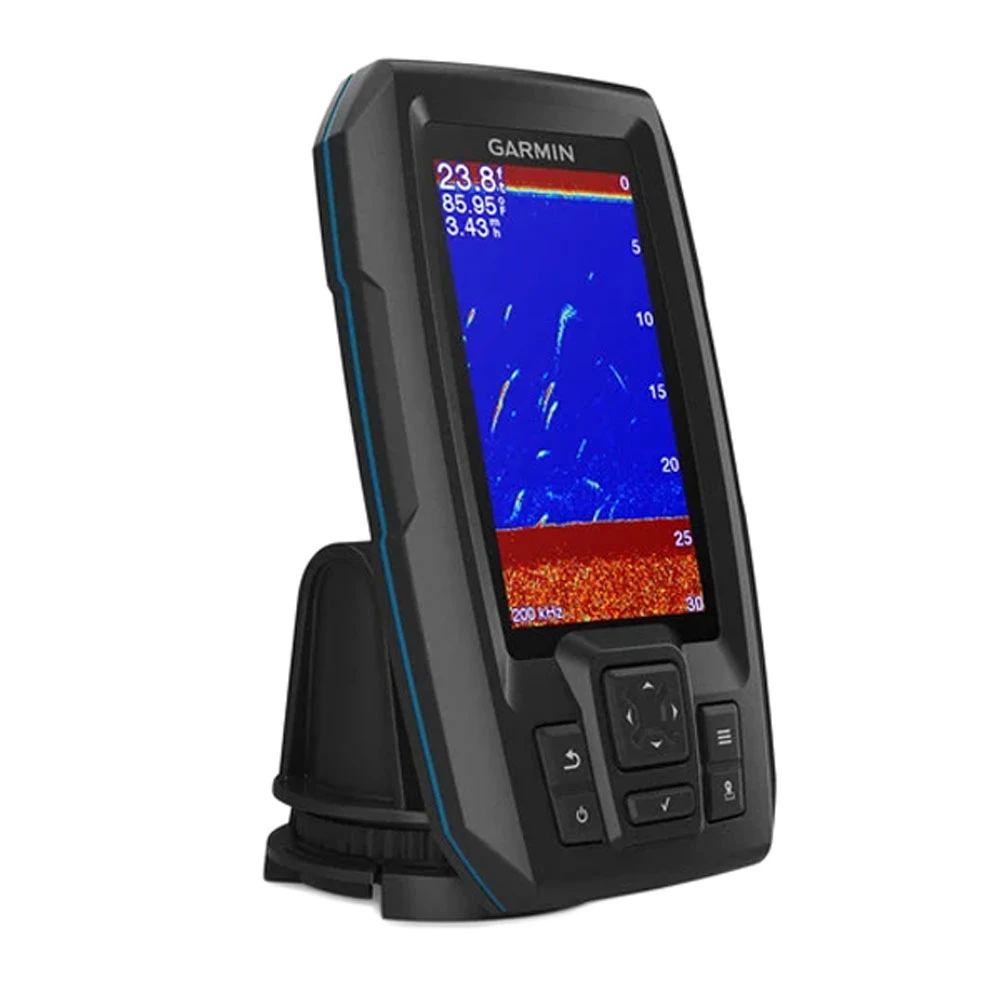

Garmin STRIKER Plus 4 Fishfinder With GPS Track Plotter

Make fishing and tracking a breeze

The Garmin STRIKER Plus 4 Fishfinder with a bright
4.3″ display and built-in GPS features CHIRP sonar for
crystal-clear images and Quickdraw Contours map drawing software,
which stores up to 2 million acres of content with 1′ contours. The
built-in GPS lets you mark and navigate to waypoints and shows your
boat’s speed.

Garmin Quickdraw Contours
Nobody knows the waters you fish better than you and your fellow
fishos. While you are trolling the shorelines and the depths,
Quickdraw Contours mapping software creates HD fishing maps of the
places you’ve been. No special knowledge is required. STRIKER Plus
4 can now store up to 2 million acres of your Quickdraw Contours
maps with 1′ contours.

CHIRP Sonar Clarity
The STRIKER Plus 4 fishfinder includes Garmin CHIRP technology for
a higher level of clarity and detail that you have come to expect
from Garmin. Crystal-clear sonar images provide remarkable target
separation and resolution in shallow and deeper water. Bottom
contours are more visible, even at higher speeds and signal noise
can be suppressed at greater depths for a timely interpretation of
what’s below.

GPS Fishfinder
The built-in, high-sensitivity GPS finds and maintains your
position anywhere you go on the water. The GPS allows you to mark
waypoints for different locations. So, if the fish are biting in 1
spot, you can mark it, and return to it on your next trip. Mark
docks, boat ramps and other locations on the lake, and create
routes back to them for your next trip.

GPS also allows STRIKER Plus 4 to show your speed on screen, so you
can be sure you’re trolling at the right speed for the lure you’re
using or in wake-controlled areas.

Built for You
The STRIKER Plus 4 fishfinder makes fishing a breeze, and it’s
built to work in any environment. The bright, sunlight-readable
display gives you a clear view of what is below your boat, even on
the brightest days. And the larger screen gives you a better view
of what is happening below the boat. The intuitive user interface
makes it simple to navigate to whatever feature you need, so you
are ready for anything on the water.

Garmin STRIKER Plus 4 4.3” Fishfinder with GPS Track
Plotter Features:

• Includes dual-beam transducer with Garmin CHIRP traditional
  sonar for crystal-clear images and remarkable target
  separation
• Built-in Garmin Quickdraw Contours mapping software lets you
  create and store maps with 1′ contours for up to 2 million
  acres
• Built-in GPS lets you mark waypoints, create routes and view
  boat’s speed
• Bright, sunlight-readable 4.3” display and intuitive user
  interface
• Rugged design for every fishing environment
• Garmin dual beam transducer included

Garmin STRIKER Plus 4 4.3” Fishfinder with GPS Track
Plotter Specifications:

General

• Physical dimensions: 3.9” x 6.9” x 1.8” (9.8 x 17.4 x 4.5
  cm)
  Weight: 0.7 lbs (0.3 kg)
  Water rating: IPX7
  Display type: QSVGA
  Display resolution: 272 X 480 pixels

Sonar Features and Specifications

• Dual-frequency (50/200 kHz) sonar capable
• Dual-beam (77/200 kHz) sonar capable
• Frequencies supported: Traditional – 50/77/83/200 kHz
• Transmit power: 200 W (RMS)
• Bottom lock (shows return from the bottom up)
• Water temperature log and graph

Fishfinder Features

• Split-screen zoom
• Ultrascroll (displays fish targets at higher boat
  speeds)
• Fish Symbol ID (helps identify fish targets)
• AutoGain Technology (minimizes clutter, maximises
  targets)
• Adjustable depth line (measures depth of underwater
  objects)
• A-scope (real time display of fish passing through transducer
  beam)
• Water temperature sensor included

Additional

• Quickdraw Contours
• Integrated GPS
• Mark Waypoints
• Course over Ground (COG)
• Current draw @ 12V: 0.23A

What’s in the box:

• STRIKER Plus 4 fishfinder
• Garmin dual beam transducer
• Power/data cable (part: 010-12234-06)
• Tilt/swivel mount
• Hardware
• Documentation
