Garmin STRIKER 7sv CHIRP ClearVu Fishfinder With GPS And GT52-TM Transducer

Find fish, mark hot spots, return to them later

Finding fish is easier than ever with the Garmin STRIKER
7sv CHIRP ClearVu Fishfinder with GPS. Mark and return to
your hot spots, boat ramps and docks. You also can share your
favorite waypoints and routes with other STRIKER and echoMAP
combos. Smooth Scaling graphics provide uninterrupted imagery when
switching between depth-range scales. Sonar history rewind allows
you to scroll back through sonar images to mark waypoints you
originally may have missed. Plus, it has a built-in flasher and
displays speed data. Includes tilt/swivel mount plus transom and
trolling motor mounting hardware and cable.

Experience the Clarity of CHIRP
STRIKER 7sv includes a Garmin high wide CHIRP transducer, which
provides a visibly higher level of clarity and detail for fish and
structure than traditional 77/200 kHz transducers. Instead of
sending just 1 single frequency, CHIRP sends a continuous sweep of
frequencies, ranging from low to high, then interprets them
individually upon their return. Since the frequencies provide a
wider range of information, CHIRP sonar technology can create
crisper fish arches with greater target separation.

Clear Scanning Sonar Images

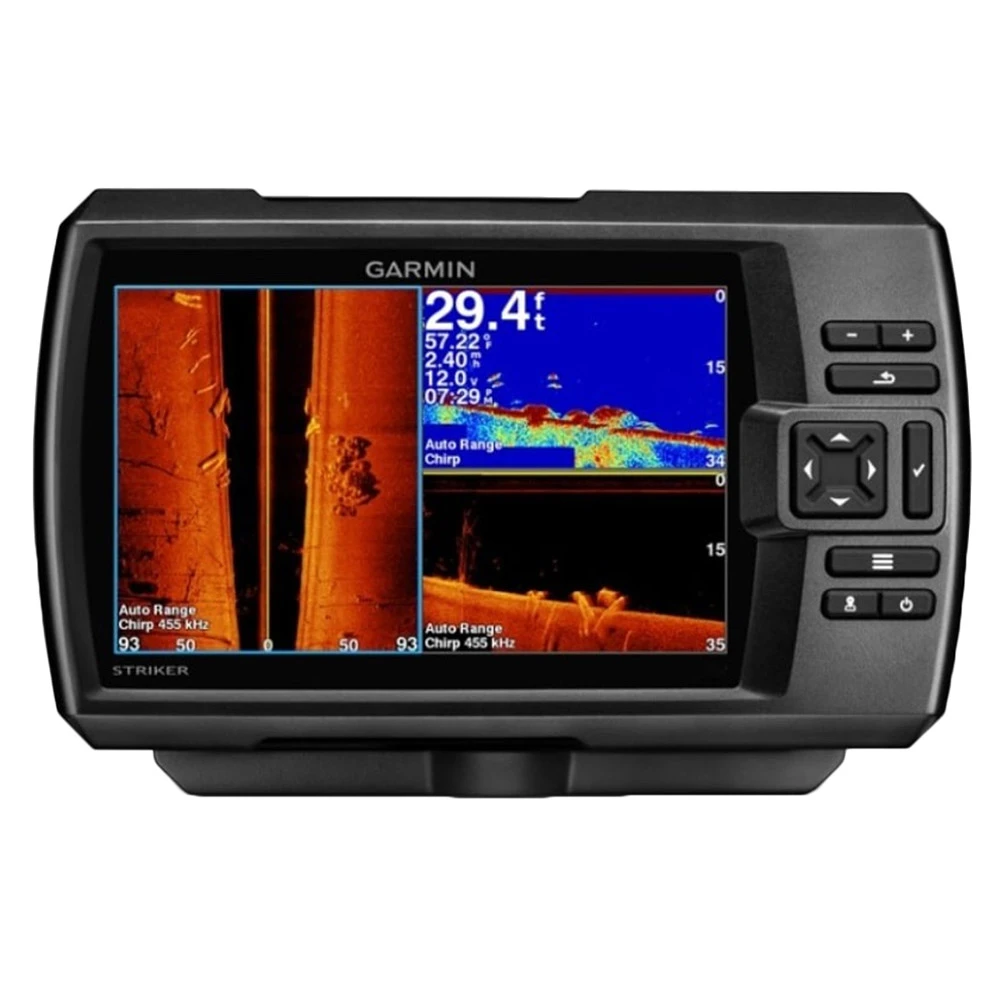

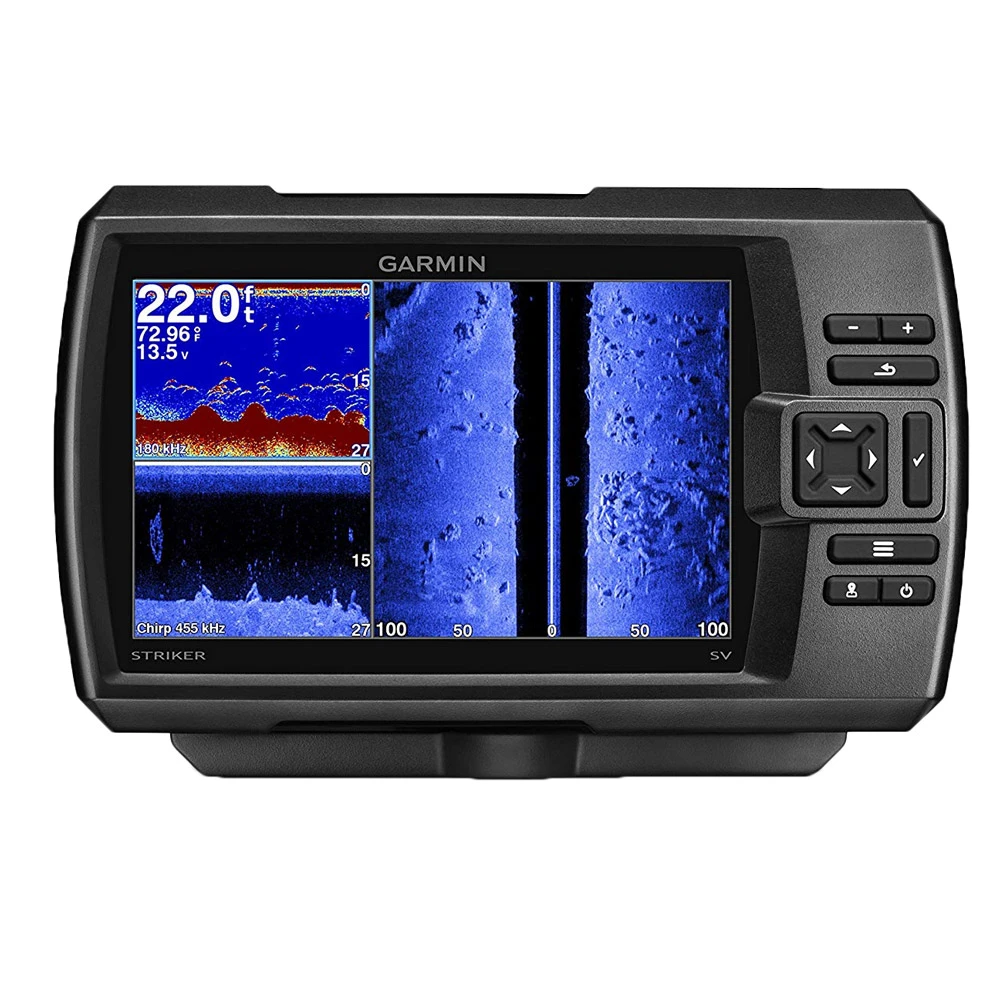

Garmin ClearVü scanning sonar gives you a nearly photographic, wide
image of what passes below your boat. Garmin SideVü scanning sonar
gives you a crisp, clear view of what lies off to each side of your
boat. You clearly see structure, submerged objects and fish. High
wide CHIRP sonar and both ClearVü and SideVü scanning sonars are
combined into 1 transducer. Also provides support for Minn Kota and
MotorGuide trolling motors with integrated transducers.

Mark Spots with High-sensitivity GPS
Unlike regular fishfinders, STRIKER fishfinders have built-in,
high-sensitivity GPS to locate your current position quickly and
precisely, then maintain your GPS location anywhere you go on the
lake. More importantly, they allow you to mark spots where the fish
are biting so you can return to them again in the future. You also
can mark docks, boat ramps and other locations on the lake. Just
follow the path created on your screen to return to them whenever
you wish.

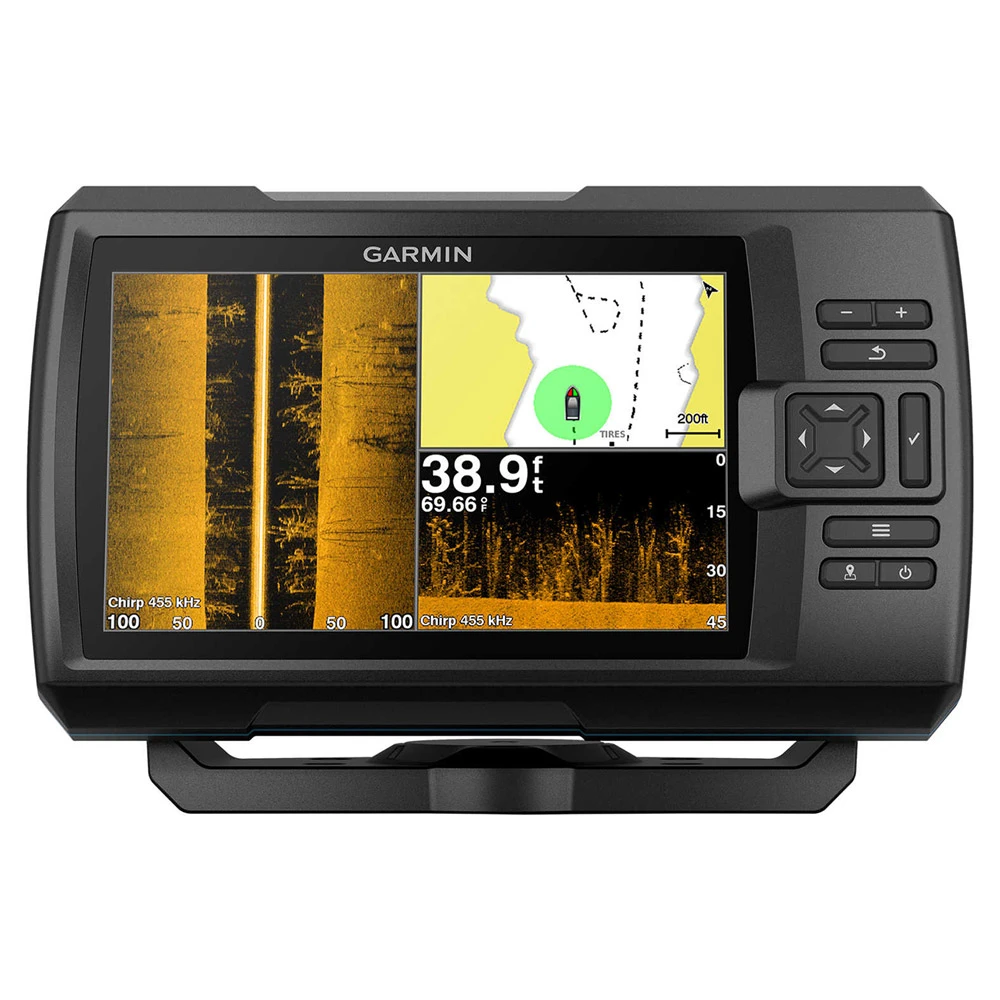

Navigate Easily with Waypoint Map
Since the STRIKER fishfinder series includes high-sensitivity GPS,
you can see your position in relation to waypoints you have marked.
Use the waypoint map to easily view, mark and navigate to locations
such as brush piles, stumps and docks. It’s also a great tool for
finding your way back to the boat ramp.

Check Your Speed on Screen
You can quickly and easily see your boat’s speed on the screen of
your STRIKER fishfinder. It’s a great tool to make sure you are
trolling at the right speed for the lure you’re using and for a
particular fish species. It’s also a good way to tell if you are
going the right speed in wake-controlled areas.

Fish Vertically with Built-in Flasher
STRIKER provides you with both a fishfinder and flasher all in 1
unit. Anytime you are stationary fishing, such as ice fishing or
jigging for crappie, the built-in flasher will show you the bottom,
whether it is solid or muddy, your jig or weighted bait and the
depth of fish as they swim into the sonar beam. You can even watch
how high your jig is being lifted and dropped and whether fish move
toward or away from it.

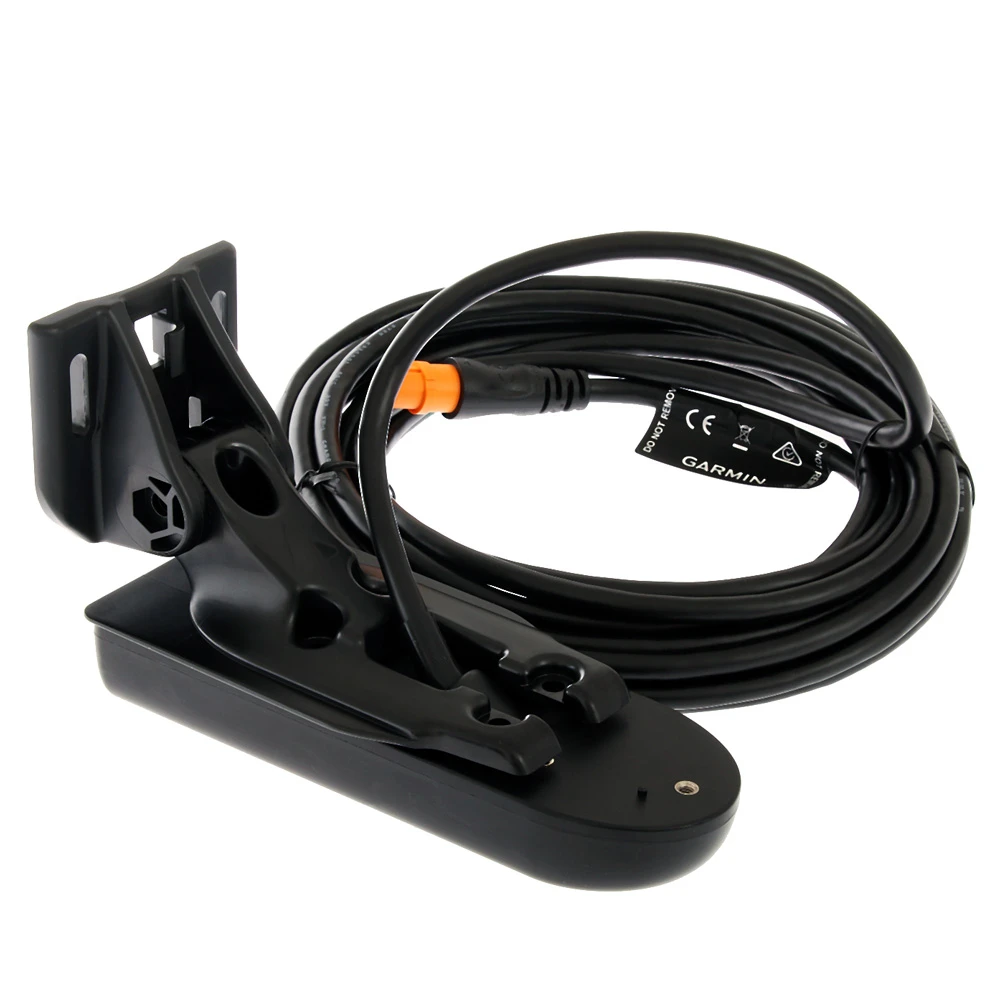

GT52-TM Transducer
The Garmin GT transducers have a centre element which allows for
improved depth performance over a CV transducer, but a narrower
coverage area that limits the display of returns to the side of the
boat.

Garmin STRIKER 7sv CHIRP ClearVu Fishfinder
Features:

• Includes transducer for built-in Garmin CHIRP traditional sonar
  plus CHIRP ClearVu scanning sonar
• Built-in GPS lets you mark waypoints, create routes and view
  boat’s speed
• Sonar history rewind
• Bright, sunlight-readable display and intuitive user
  interface
• Rugged design for every fishing environment
• Split-screen zoom
• Ultrascroll (displays fish targets at higher boat
  speeds)
• Fish Symbol ID (helps identify fish targets)
• AutoGain Technology (minimizes clutter, maximizes
  targets)
• Adjustable depth line (measures depth of underwater
  objects)
• A-scope (real time display of fish passing through transducer
  beam)
• Water temperature sensor included
• Tilt/swivel mount
• Course over ground (COG)
• Current draw @ 12V: 0.67A

Garmin STRIKER 7sv CHIRP ClearVu Fishfinder
Specifications:

General

• Physical dimensions: 9.3″ x 5.5″ x 2.3″ (23.5 x 14 x 5.8
  cm)
• Display size: 3.6″ x 6″ (9.1 x 15.2 cm); 7″ diag (12.7
  cm)
• Display resolution: 800 x 480 pixels
• Display type: WVGA colour
• Weight: 24oz (680 g)
• Water rating: IPX7

Sonar Features and Specifications

• Dual-frequency (50/200 kHz) sonar capable: Yes
  Dual-beam (77/200 kHz) sonar capable: Yes
• Frequencies supported:
  Traditional: 50/77/200 kHz
  CHIRP (mid and high)
  ClearVü: 260/455/800 kHz
  SideVü: 260/455/800 kHz
• Transmit power: 500 W (RMS)
• Maximum depth: 2,300 ft freshwater, 1,100 ft saltwater – depth
  capacity is dependent on water bottom type and other water
  conditions.
• Bottom lock (shows return from the bottom up): Yes
• Water temperature log and graph: Yes

What’s in the Box

• STRIKER 7sv
• Transducer
• 12-pin transducer to 4-pin sounder adapter cable
• Transom and trolling motor mounts
• Power cable
• Tilt mount
• Documentation
