Panoptix is the most unique and innovative sonar on the water.
The newest member of the Panoptix family, PS60 Thru-hull Down
Transducer, offers the same features as the PS30 transom mount
version, but in a thru-hull installation. This configuration is
ideal for coastal or offshore fishermen with larger boats. Panoptix
PS60 transducer allows you to see fish and bait swimming under your
boat — in real time. To truly appreciate Panoptix, you have to see
it for yourself. Panoptix is compatible with Garmin GPSMAP®
7400/7600 series, GPSMAP 8000/8500 series and GPSMAP
721/741/820/840/1020/1040 series chartplotters.

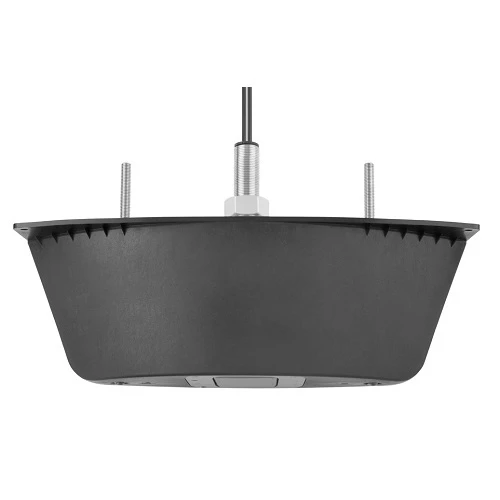

Garmin Panoptix PS60 Thru-hull Down transducer
Features:
- LIVEVÅ¡ DOWN – Provides real-time moving sonar images below the
boat; see small baitfish and large target fish swimming around and
pinpoint their distance left or right and their depth - REALVÅ¡ 3-D DOWN – Scans the area below the boat from front to
back and side to side, providing a full 3-D view showing bottom
contour changes, fish and structure, even while stationary - REALVÅ¡ 3-D HISTORICAL – Provides a wealth of historical sonar
data – used for finding fish located throughout the entire water
column in 3-D, from bottom to surface - MOUNTING OPTION – Stainless steel stem, fairing block and
mounting hardware allow for thru-hull installation on a boat with a
deadrise between 0 and 25 degrees
Specifications:
| Temperature range | Operating: 0 C to 40 C Non-operating: -40 C to 70 C |
|---|---|
| Requencies supported | 417 kHz |
| Maximum range | 300 feet |
| Input Voltage | 10-35vDc |
| Input Draw | <0.8A @ 12 V |
| Dimensions | 19.5” x 8.8” x 10.9” |
What’s in the Box:
- PS60 thru-hull down transducer (integrated 30 foot network
cable, 15 foot power cable) - Faring block
- Stainless steel thru-hull mounting hardware
- Split ring RJ45 connector
- Documentation
