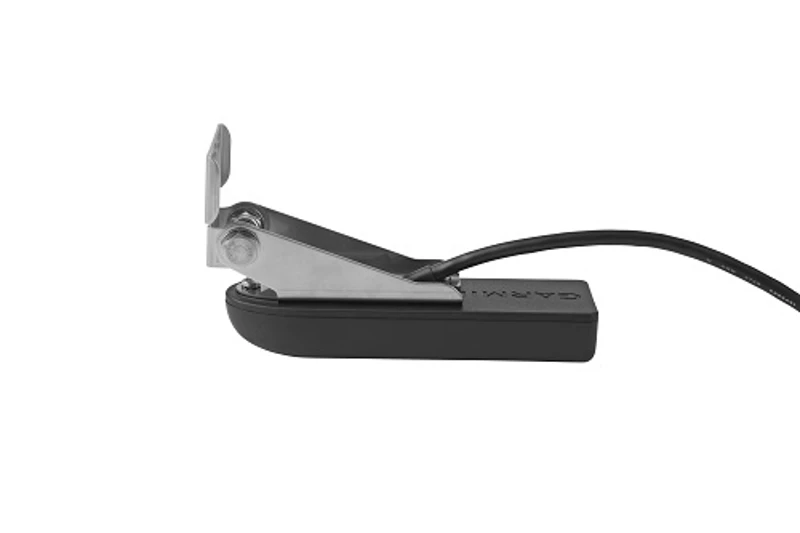

Garmin GT52HW-TM Transom Mount Transducer

Clear and crisp

The Garmin GT52HW-TM Transom Mount Transducer is
pefect for freshwater fishos who want CHIRP traditional sonar and
CHIRP DownV and CHIRP SideV scanning sonar in one unit. This
transom mount transducer consistently displays clear and crisp fish
arches with superior target separation as well as clear definition
of structure below and to the side of the boat. The 12-pin
transducer features high wide band CHIRP traditional sonar (150-240
kHz) and has a power rating of 250 W. The CHIRP DownV and CHIRP
SideV (455/800 kHz) elements have a power rating of 500 W each
(1,500 W total). GT52HW-TM is ideal for mounting to a trolling
motor due to its compact size. For installation, follow the
included instructions carefully to avoid damaging your boat.

Garmin GT52HW-TM Transom Mount Transducer
Features:

• Garmin GT52HW-TM Plastic
• Transom or Trolling Motor Mount Transducer
• High Wide CHIRP (150-240 kHz, 250 W)/CHIRP DownV and CHIRP
  SideV (455/800 kHz, 500 W, 12-pin)

Garmin GT52HW-TM Transom Mount Transducer
Appreciation:

• Frequencies:
  Traditional: CHIRP 150-240 kHz
  DownV: CHIRP 425-485 kHz and CHIRP 790-850 kHz
  SideV: CHIRP 425-485 kHz and CHIRP 790-850 kHz
• Transmit Power:
  Traditional: 250 W
  DownV: 500 W
  SideV: 500 W
• Maximum Depth:
  Traditional: 800 ft
  DownV: 500 ft
  SideV: 500 ft
• Beam Width ( degrees ) LF/HF (-3dB):
  Traditional: 24-16
  DownV: 2.0×50@455 | 1.0×30@800
  SideV: 2.0×50@455 | 1.0×30@800
• Cable length: 20 feet
• Connector: 12 pin
• Temperature: Yes
• Dimensions: 155 x 52 x 26 mm

What’s in the Box:

• GT52HW-TM transducer
• Transom mount
• Trolling motor mount
• Mounting hardware
• Documentation
