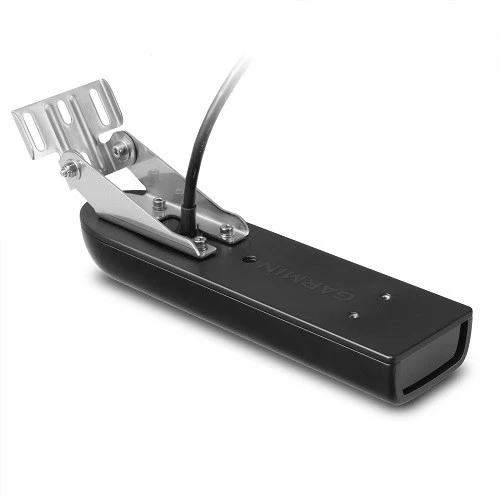

Garmin GT50M-TM Transom Mount DownVu/SideVu 12-Pin

This transom mount transducer provides ultra-clear sonar
pictures of objects, structure and fish that pass below your boat.
This traditional CHIRP and CHIRP DownV/SideV transducer is
optimized for clearer images at shallower depths.

The CHIRP DownV/SideV elements have a power rating of 500 W per
element (1,500 W total) and operating frequencies of 455/800 kHz.
The traditional CHIRP sonar has a power rating of 300 W and
operating frequencies of mid-band CHIRP 80-160 kHz. It also
includes a built-in fast response temperature sensor.

Garmin GT50M-TM Plastic Transom Mount Features:

• DownV/SideV 500 W (CHIRP 455/800 kHz) Traditional 300 W
  (Mid-band CHIRP 80-160 kHz) Transducer with Temp (12-pin)
• Model: 010-0196500

Specifications:

DownV/SideV Capability
CHIRP	Yes
Frequency	455-800
Power	500w each total 1,500w
Maximum depth	750 ft down, 500ft left and right
Traditional Sonar Capability
CHIRP	Yes
Frequency	Mid-band CHIRP 80-160
Power	300w
Maximum depth	1,500 saltwater
Water temperature	Yes

What’s in the Box:

• 12-pin transom mount transducer
• Instalation instructions
• Mounting hardware
