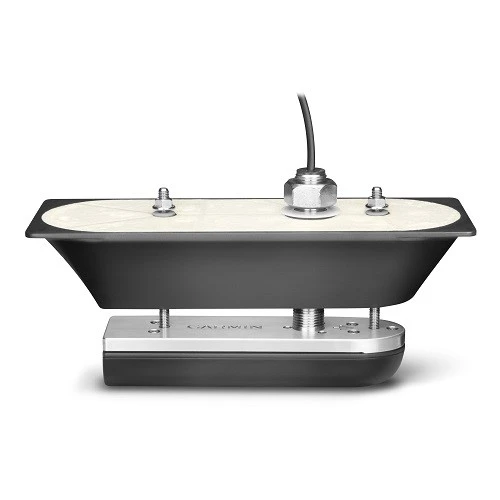

This thru-hull transducer provides ultra-clear sonar pictures of
objects, structure and fish that pass below your boat. This
traditional sonar and CHIRP DownV/SideV transducer is optimized for
depth performance and rough conditions.
The CHIRP DownV/ SideV elements have a power rating of 500 W per
element (1,500 W total) and operating frequencies of 260/455 kHz.
The traditional sonar has a power rating of 600 W and operating
frequencies of 50/200 kHz. It includes a built-in fast-response
temperature sensor. For hull deadrises less than 25 degrees.
Garmin GT41-TH Stainless Steel Thru-Hull Features:
- DownV/SideV 500 W (CHIRP 260/455 kHz) Traditional 600 W (50/200
kHz) Transducer with Temp (12-pin) - Model: 010-01964-10
- UPC: 753759152864
Specifications:
| DownV/SideV Capability | |
|---|---|
| CHIRP | Yes |
| Frequency | 260/455 |
| Power | 500w each total 1,500w |
| Maximum depth | 1000 ft down, 750ft left and right |
| Traditional Sonar Capability | |
| CHIRP | No |
| Frequency | 50/200 |
| Power | 600w |
| Maximum depth | 1,500 saltwater |
| Water temperature | Yes |
| Maximum deadrise | 25 degrees |
What’s in the Box:
- 12-pin transducer with stainless steel stem
- Fairing block
- isolation plate and bushings
- Mounting hardware
- Instalation instructions










Reviews
There are no reviews yet.
