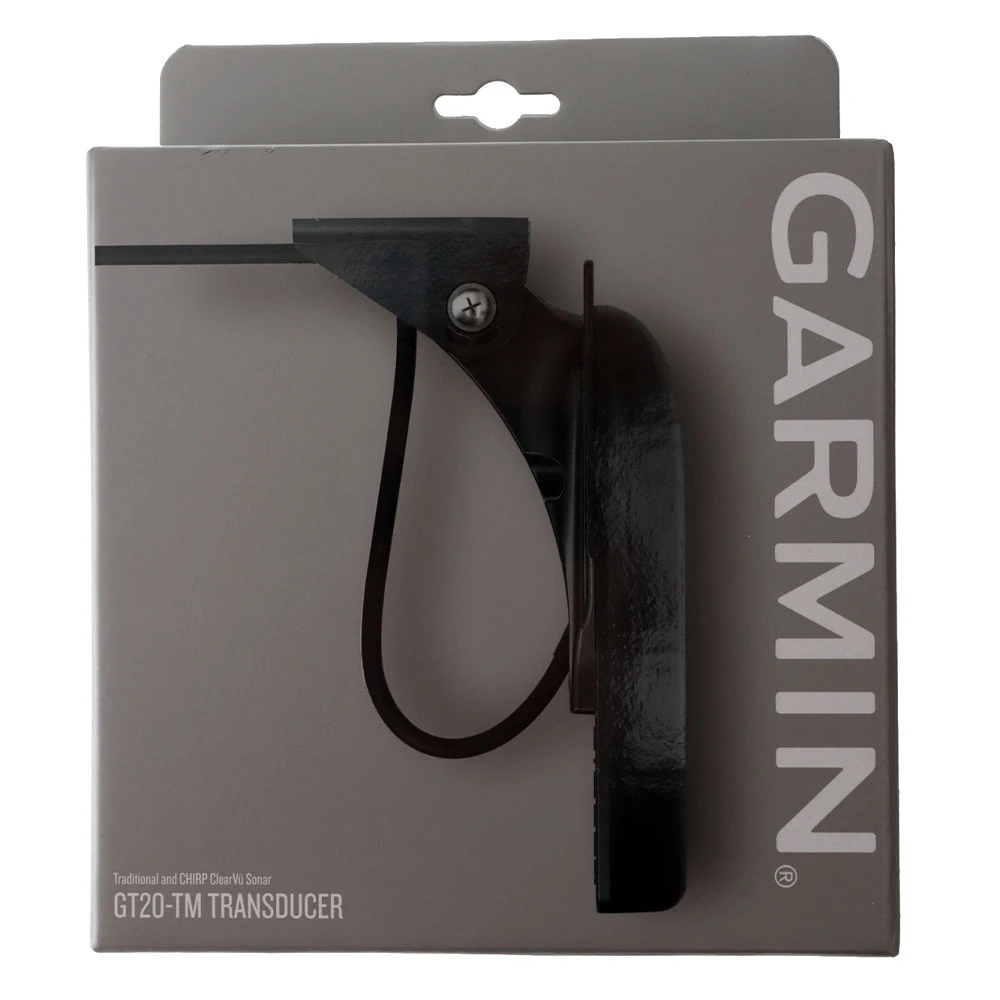

Garmin GT20-TM Transom Mount CHIRP ClearVu Transducer

Get ultra-clear sonar pictures

Perfect for the shallow water fisho who wants traditional and CHIRP ClearVü scanning sonar, this transom or trolling motor mounted Garmin GT20-TM CHIRP ClearVu Transducer consistently displays fish arches as well as clear pictures of objects, structure and fish that pass below your boat.

The 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 ft (traditional) and 750 ft (ClearVü); an operating frequency of 77/200 kHz (traditional) and 455 kHz (ClearVü); and a 0 to 70 transom angle. This transducer comes with transom and trolling motor mounts and installation instructions.

Garmin GT20-TM Transom Mount CHIRP ClearVu Transducer Features:

• Traditional and CHIRP ClearVu scanning sonar
• Transom or trolling motor mounted (mounts included)
• Built-in fast response temperature sensor

Garmin GT20-TM Transom Mount CHIRP ClearVu Transducer Specifications:

• Frequency: Traditional 77/200; ClearVü CHIRP 455 kHz (435-475 kHz) & 800kHz (800-840 kHz)
• Power: Traditional 500 W; ClearVü 500 W
• Beamwidth: Traditional (45/15); ClearVü (2.5×53 @ 455 kHz) & (1.6×29 @ 800 kHz)
• Maximum depth: Traditional: 1,900 ft.; ClearVü: 750 ft.
• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 4-pin
• Cable length: 20 ft.
• Supported deadrise/Transom angles: 0°-70° degree transom
