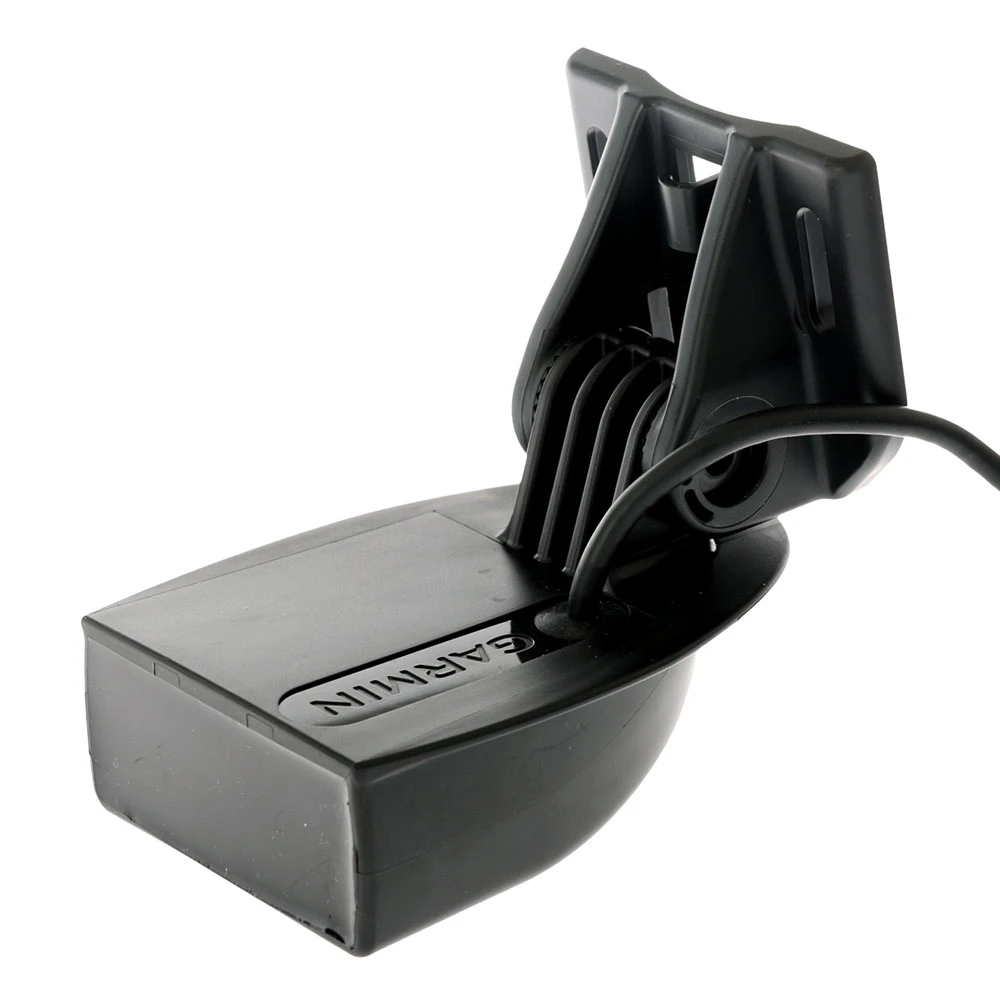

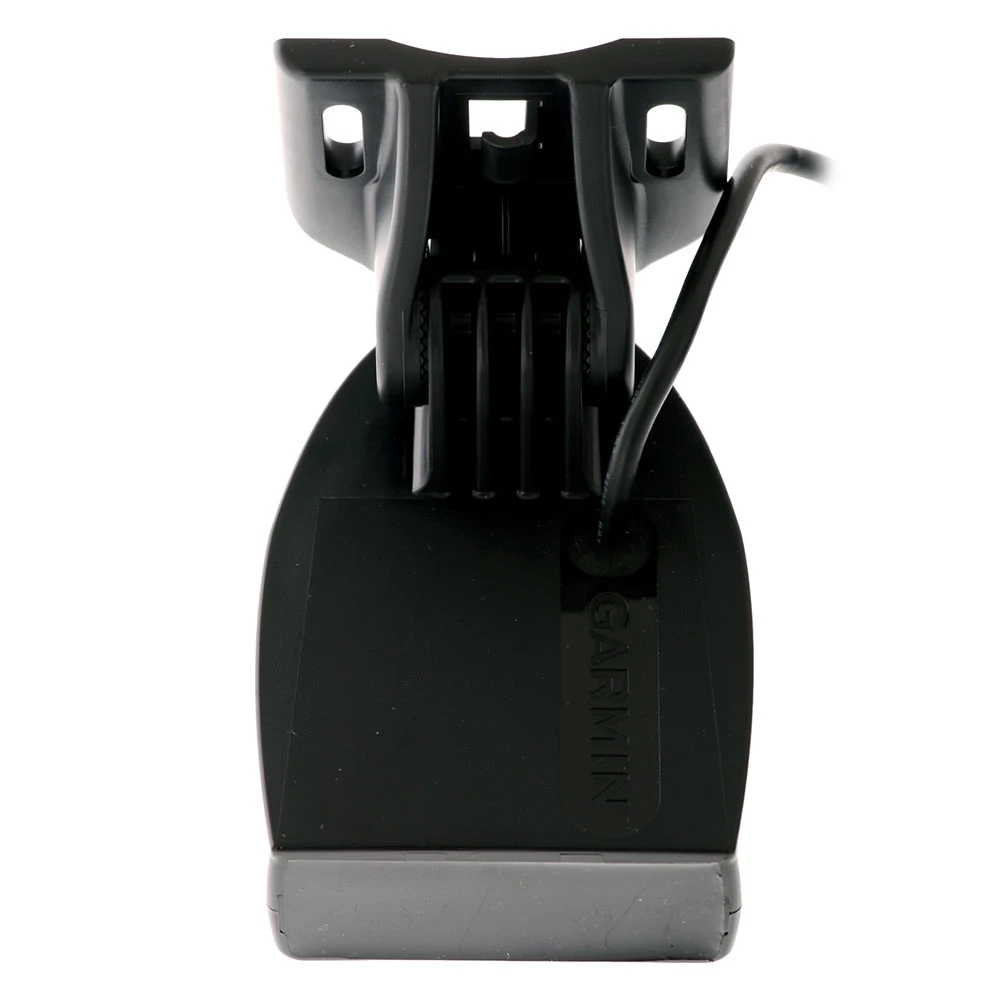

Garmin GT15M-TM Transom Mount Transducer CHIRP Mid-Band 85/165kHz

Clear bottom definition

The Garmin GT15M-TM Transom Mount Transducer is
perfect if you want clear bottom definition under the boat as well
as crisp, clear and wide fish arches with excellent target
separation to depth up to 1,900 feet. The 8-pin transducer features
mid-band CHIRP traditional sonar (85-165 kHz) and has a power
rating of 600 W. It can be mounted on the transom.

Garmin GT15M-TM Transom Mount Transducer
Features:

• Frequency: CHIRP Mid-band (85-165 kHz)
• Power: 600 W
• Beamwidth: 24-13
• Maximum depth: 1,900 ft. freshwater
• Depth and Temperature
• Number of pins: 8-pin

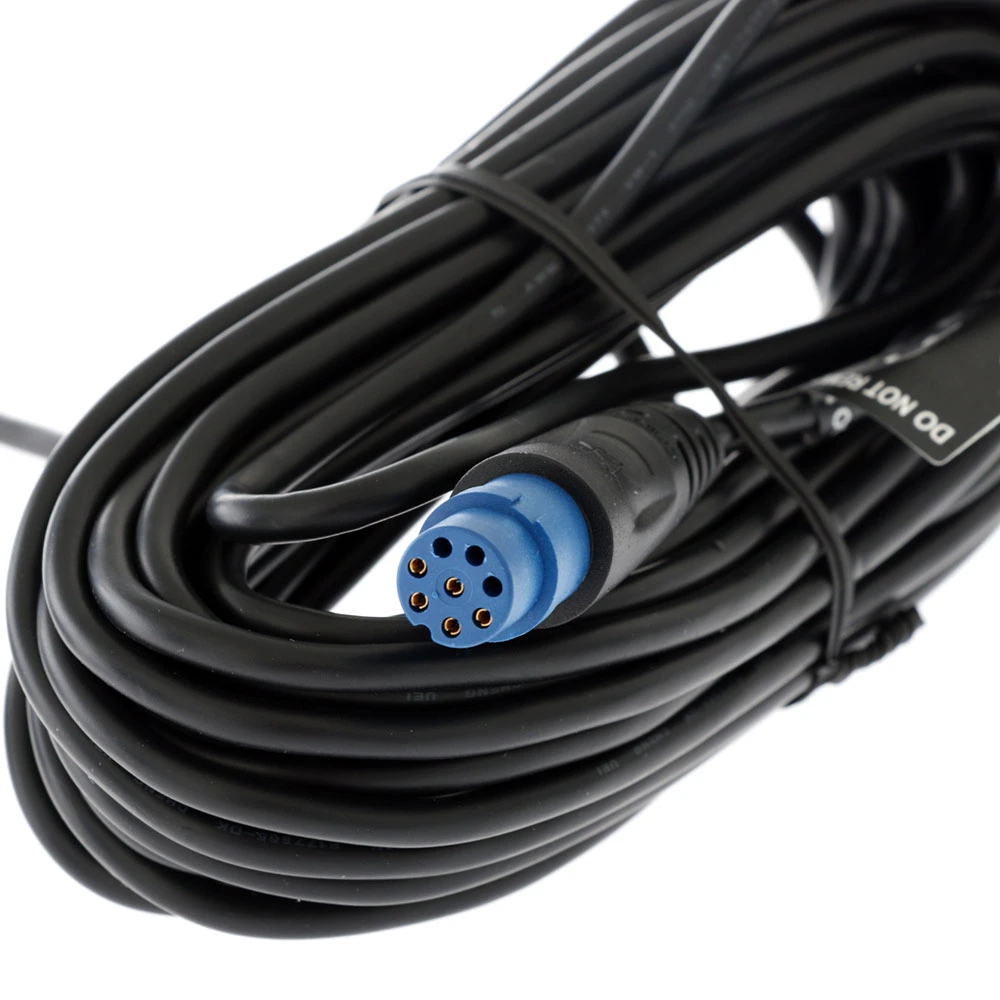

• Cable length: 20 ft.
• Supported deadrise/Transom angles: 0°- 70° degree
  transom
• Weight: 1.00 lb (0.45 kg)
• Frequency: Traditional: CHIRP 85-165 kHz
• Transmit power: Traditional: 600 W
• Max Depth: Traditional: 1,900 ft
• Beam Width (°) LF/HF (-3dB): Traditional: 24/14
• Read water temperature: Yes

Note: Follow the included installation
instructions carefully to avoid damaging your boat.
