Garmin GSD 26 CHIRP Professional Sonar Module

Serious sonar for serious sportfishing

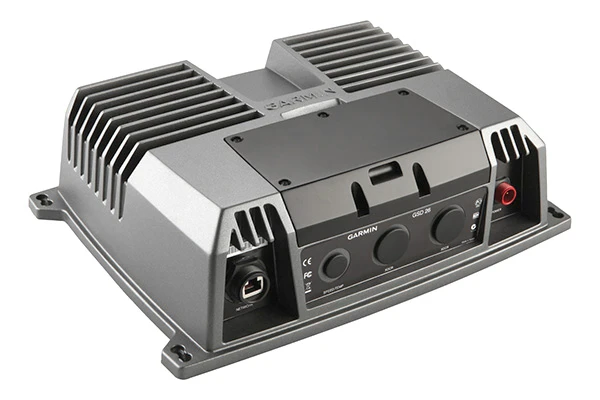

The Garmin GSD 26 CHIRP Professional Sonar Module
ushers in the next evolution of sportfishing technology, providing
unrivalled target separation at far greater depths than traditional
sonar. For serious deep-sea sportfishing, the GSD 26 takes
high-definition targeting to a whole new level. With a compatible
transducer, the GSD 26’s Spread Spectrum technology scans on
multiple frequencies at one time, returning vast amounts of data to
the receiver. As a result, you can expect precise,
shallow-water-like target separation at much greater depths – up to
10,000 ft (3,000 m).

A traditional fixed frequency mode allows you to manually adjust
frequencies from 25 kHz to 210 kHz for enhanced targeting of
specific fish species. You can also adjust transmit power from 300
W to 3 kW (depending on transducer) for even more control over your
sonar returns.

Get Two Sonars in One
The GSD 26’s dual-transceiver design allows for simultaneous and
independent transducer operation. You have complete control over
the data you see on your compatible Garmin chartplotter, which
easily connects to the GSD 26 over the Garmin Marine Network.

Garmin GSD 26 CHIRP Professional Sonar Module
Specifications:
Physical & Performance

• Physical dimensions: 10.8″×14.7″×3.9″ (274 mm × 373 mm × 100
  mm)
• Weight: 11.37 lbs (5.16 kg)
• Water rating: IPX7
• Temperature range: From 5°F to 158°F (from -15°C to
  70°C)
• Case material: Fully gasketed, aluminium and steel housing with
  plastic access panel
• Garmin Marine Network ports: 1

Electrical

• Power input : 10-35 V
• Power usage: 00 W maximum
• Fuse: 10 A
• Compass-safe distance: 23.6 in. (60 cm)

Sonar Features & Specifications

• Transmit power: 25-3,000 W rms
• Frequencies supported: 25-210 kHz (dependent on
  transducer)
• Maximum depth: 10,000 ft (3,048 m)
• Traditional CHIRP capable: Yes
• DownVü: No
• SideVü: No

What’s in the Box:

• GSD 26
• Power cable
• Marine network cable (6 ft)
• Mounting hardware
• software update SD card
• Documentation

Garmin GSD 26 CHIRP Professional Sonar Module Installation
Instructions
