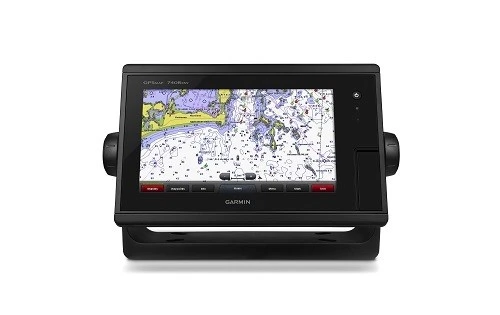

Garmin GPSMAP 7408xsv Chartplotter/Sonar Combo

Designed for sportfishermen, cruisers, sailors and sailing
racers who demand high performance, ease of operation and feature
integration in a chartplotter/sonar combo. The 8-inch multi-touch
widescreen GPSMAP 7408xsv combo includes built-in dual CHIRP sonar
plus CHIRP DownV and CHIRP SideV scanning sonar with the clearest
images on the water. Its internal 10 Hz GPS updates your position
and heading 10 times per second. GPSMAP 7408xsv is fully network
capable, including Garmin Network and NMEA 2000, and offers the
conveniences of built-in Wi-Fi® connectivity.

Built-in Advanced Sonar Capabilities

The built-in sonar capabilities of the GPSMAP 7408xsv include 1
kW dual CHIRP sonar, the most sophisticated sonar technology
available for the fishing and boating public. Dual CHIRP sonar
provides amazingly clear target separation and definition because
it puts even more energy onto the target than CHIRP. It gives you
the ability to show low/high, med/high or low/med on the screen at
the same time, enhancing your ability to distinguish between game
fish and balls of bait fish. It also includes both CHIRP DownV and
CHIRP SideV scanning sonar that provide nearly photographic sonar
images of fish and structure that passes below and to the sides of
your boat. Garmin DownV and SideV provide the clearest scanning
sonar images on the water. Also supported are 50 kHz/200 kHz, 77
kHz/200 kHz and Minn Kota® and MotorGuide® trolling motor
transducers (sold separately). GPSMAP also includes sonar-recording
capability that coordinates the timing of the sonar return with
your boat’s position and saves digital information for playback on
a computer using HomePort™ planning software.

Garmin Marine Network and NMEA 2000 Support

Full-network compatibility allows you to add more capabilities
to your boat. GPSMAP 7408xsv supports radar, autopilot,
instruments, multiple screens, FUSION-Link, sensors, remote sonar
modules, digital switching, thermal cameras, GRID rotary knob,
joystick and keypad control, and more.

Add Array or Dome Radar

You can add your choice of Garmin marine radar, including
Schumacher’s powerful xHD2 open array radars or xHD dome radars
that pairs ease of use with advanced open array features.

Network Sharing

GPSMAP 7408xsv allows you to share features with other
compatible GPSMAP units, such as sonar, radar, supplemental maps
and user data, including waypoints, routes and tracks. User data
entered into 1 chartplotter can be automatically synced with other
chartplotters in a network.

Heading and Position Refreshed 10 Times Per Second

Fast, responsive 10 Hz GPS/GLONASS refreshes your position and
heading 10 times each second to make your movement on the screen
more fluid. It makes dropping up to 5,000 accurate waypoints — and
finding your way back to them — quick and easy.

Upgrade with the Best Maps on the Water

Two SD™ card slots provide expandable memory for accessory map
purchases.

Garmin GPSMAP 7408XSV 8-inch Multi-touch Widescreen
Chartplotter/Sonar Combo Features:

• 8-inch multi-touch widescreen display (1024 x 600 WSVGA)
• High-sensitivity internal 10 Hz GPS/GLONASS
• Fully network capable for Garmin Marine Network and NMEA 2000®,
  plus NMEA 0183 support
• Supports GSD™ premium sonar and GCV™ scanning sonar
  modules
• Built-in dual CHIRP sonar plus CHIRP DownV and CHIRP SideV
  scanning sonar with the clearest images on the water (transducer
  sold separately)
• J1939 port provides dedicated CAN port for receiving engine
  data.
