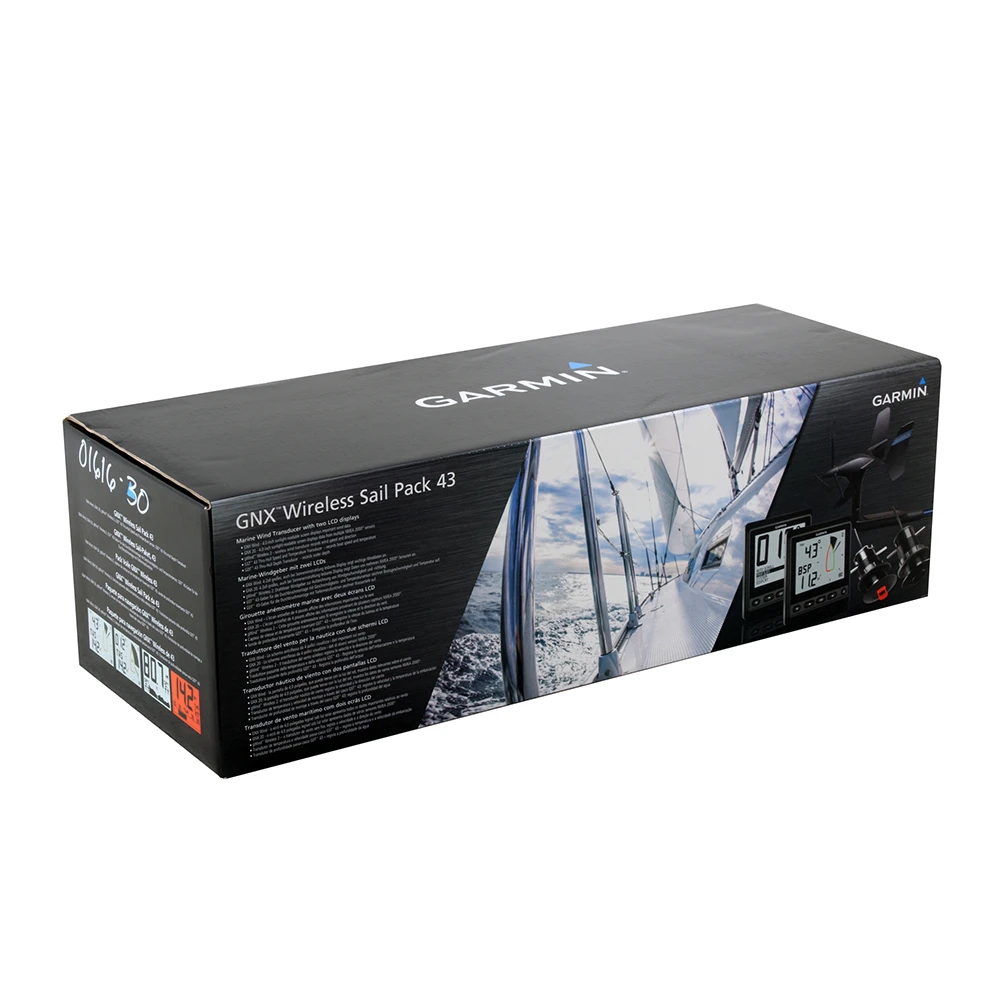

Garmin GNX Wireless Sail Pack Incl GDT/GST 43

The sail pack you need with 43mm transducers

Update your sailboat’s electronics with the Garmin GNX
Wireless Sail Pack that includes everything you need with
43 mm transducer fittings for depth, temperature and water
speed.

GNX Wind Instrument
GNX Wind gives you the wind data necessary to make confident
decisions. Featuring high-visibility, glass-bonded backlit
monochrome LCD display with customisable backlight colours, GNX
Wind interfaces through the NMEA 2000 network to show 2 data fields
and a digital wind rose simultaneously to display true and apparent
wind data, steering guidance, boat speed and more. Low power
consumption of 350 mW daylight (no backlight) and 400 mW nighttime
(mid-level backlight) is perfect for sailboats. Customisable user
settings allow you to configure the screen layout to your preferred
setting. Display configurations include more than 15 important
marine parameters for wind, speed and navigation. The GNX Wind
connects wirelessly with the gWind Wireless 2 and also to a quatix
3 GPS marine smartwatch via ANT technology to stream wind data
directly to your wrist.

gWind Wireless 2 Transducer
gWind Wireless 2 offers an easy-to-install solution that eliminates
running wires through masts up to 50 feet. Accurate wind signals
are sent wirelessly via an ANT connection directly to a GNX Wind
instrument or to a compatible Garmin GPSMAP chartplotter. The
transducer features renowned Nexus twin-fin technology with a
3-bladed propeller, providing accurate wind speed and stable wind
angle in lighter wind conditions.

GNX 20 Marine Instrument
The easy-to-read GNX 20 display with black digits on a white or
colour background clearly shows water depth, boat speed through the
water, water temperature and 50-plus marine and boat parameters
through the NMEA 2000 network. Customisable user settings allow you
to choose from 5 available display configurations for sailboat or
powerboat user profiles: single, dual and triple function plus
gauge and graph mode to display wind, depth and speed data, or
customise the pages to display the marine and boat data most
important to you. Its glass-bonded display with anti-glare lens
coating provides excellent daytime and nighttime readability with
high-contrast digits scalable up to 36 mm. Uses only 25 mA with 350
mW daytime usage requiring no backlight and just 400 mW with a
mid-level backlight setting at night.

GDT 43 and GST 43 Transducers with 43mm Fittings
If you already have 43 mm fittings for your thru-hull transducers,
there’s no need to drill new holes. The bundle includes 43 mm
thru-hull transducers, which can retrofit boats with existing Nexus
TH43 transducers. The GST 43 is a speed and temperature transducer
and the GDT43 is a depth transducer. Each transducer comes with an
adaptor that allows data to be shared over the NMEA 2000 network to
a compatible Garmin chartplotter or instrument display.

Garmin GNX Wireless Sail Pack Features:

• Includes Garmin GNX Wind and GNX 20 marine instruments, gWind
  Wireless 2 transducer, plus GDT 43 and GST 43 with 43 mm fittings
  and adaptors for NMEA 2000® network sharing
• GNX Wind and GNX 20 instruments have highly visible monochrome
  LCD displays
• gWind Wireless 2 transducer eliminates running wires through
  masts up to 50 feet
• Accurate water depth, water speed and water temperature data
  and more
• Easy plug-and-play installation with NMEA 2000 network

Garmin GNX Wireless Sail Pack Specifications:
gWind Wireless 2 Transducer

• Unit Dimension, WxH: 13.6″ x 24″ (345 mm x 610 mm)
• Weight: 350 g
• Waterproof: Yes (IPX6)
• Temp Range: From 5°F to 158°F (-15°C to 70°C)
• Storage Temperature: From -4°F to 176°F (-20°C to
  80°C)
• Power Usage: Battery (rechargeable though the solar
  panel)
• Accuracy Angle: Better than ±1.5°
• Speed: Better than ±3%
• Wind Speed Range: 0. 8-90 knots (0. 4-50 m/s)
• Wireless Connectivity: Yes

GNX Wind instrument:

• Physical dimensions: 4.3″ x 4.5″ x 1.2″ (110 x 115 x 30
  mm)
• Display size, WxH: 3.3″ x 2.4″; 4.0″ diagonal (83 x 60 mm;
  101.6 mm diagonal)
• Weight: 8 oz (230 g)
• Water rating: IPX7
• NMEA 2000 certified: Yes
• Power consumption: 0.35 W (day); 0.4 W (night)
• Voltage range: 9-16 V (from NMEA 2000)
• Mounting options: Flush or Flat
• Temperature range: From 5 to 158 degrees F (from -15 to 70
  degrees C)
• Compass-safe distance: 8.25″ (209 mm)

GNX 20 instrument:

• Physical dimensions: 4.3″ x 4.5″ x 1.2″ (110 x 115 x 30
  mm)
• Display size, WxH: 3.3″ x 2.4″; 4.0″ diagonal (83 x 60 mm;
  101.6 mm diagonal)
• Weight: 8.0 oz (230 g)
• Water rating: IPX7
• NMEA 2000 certified: Yes
• Power consumption: 0.35 W (day); 0.4 W (night)
• Voltage range: 9-16 V (from NMEA 2000)
• Mounting options: Flush or Flat
• Temperature range: From 5 to 158 degrees F (from -15 to 70
  degrees C)
• Compass-safe distance: 8.25″ (209 mm)

What’s in the Box:

• gWind Wireless 2 transducer with mast bracket
• GNX Wind
• GNX 20
• GST 43 thru-hull speed and temperature transducer
• GST 10 adapter cable
• GDT 43 thru-hull depth sensor
• NMEA 2000 adapter
• NMEA 2000 power cable
• NMEA 2000 terminators
• 2 NMEA 2000 drop cable (2 meters)
• 4 NMEA 2000 T-connectors
• Mounting hardware
• NiMH battery
• Documentation
