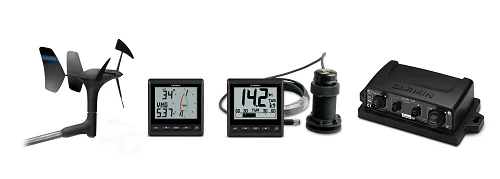

Garmin GNX Wind Wired Sail Pack

With a GNX Wind Wired Sail Pack, you will have all the equipment
you need to know what’s going on with the wind and the water.

GNX Wind Marine Instrument

GNX Wind gives you the wind data necessary to make confident
decisions. Features high-visibility, glass-bonded backlit
monochrome LCD display with customizable backlight colors. It also
interfaces through the NMEA 2000 network to show 2 data fields and
a digital wind rose simultaneously to display true and apparent
wind data, steering guidance, boat speed and more. Low power
consumption of 350 mW daylight (no backlight) and 400 mW nighttime
(mid-level backlight) is perfect for sailboats. Fully customizable
user profiles allow you to configure the screen layout to your
preferred setting. Display configurations include more than 15
important marine parameters for wind, speed and navigation. It can
even wirelessly connect to a quatix 3 GPS marine smartwatch via ANT
technology to stream wind data directly to your wrist.

gWind Wired Transducer

gWind transducer features twin-fin technology with 3-bladed
propeller for more accurate True Wind Speed (TWS) in lighter air
while the twin-fin design gives a more stable True Wind Angle
(TWA). The 3-bladed propeller, unlike a cups design, is always
efficient. Combined with optic reading, this transducer provides
superior accuracy at low wind speeds and also provides for
excellent linearity.

GNX 20 Marine Instrument

The easy-to-read GNX 20 marine instrument display with black
digits on a white or color background clearly shows water depth,
boat speed through the water, water temperature and 50-plus marine
and boat parameters. Its glass-bonded display with anti-glare lens
coating provides excellent daytime and nighttime readability with
high-contrast digits scalable up to 36 mm.

DST800 Thru-hull Smart Transducer

DST800 provides water depth, water speed and water temperature
data to the NMEA 2000 network and GNX 20 instrument. This 100 W
transducer can read depths up to 330 feet, and it has an operating
frequency of 235 kHz and a beamwidth of 10×44 degrees.
