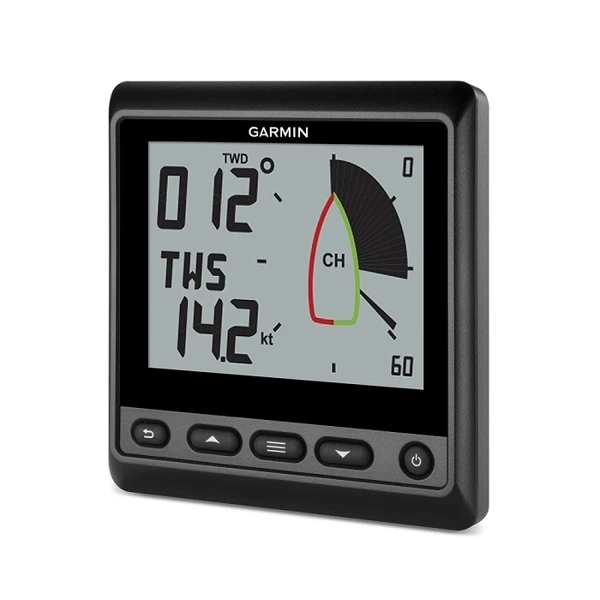

Garmin GNX Wind Marine Instrument

If you own a 20- to 40-foot sailboat with no wind system or an
older wind system onboard, then GNX Wind marine instrument is an
excellent choice to provide the accurate, reliable data you need to
make confident decisions.

GNX Wind features a high-visibility, glass-bonded backlit
monochrome LCD display with customizable backlight colors making it
easy to see from nearly any angle at a distance. Background colors
can be customized to nearly any color preference to provide the
contrast and visibility that work best in any lighting condition.
It interfaces through the NMEA 2000 network to show 2 data fields
and a digital wind rose simultaneously to display true and apparent
wind data, Steer Pilot, boat speed and more. Auto-scroll feature
rotates through screens for easy, hands-free operation. Low power
consumption of 350 mW daylight (no backlight) and 400 mW nighttime
(mid-level backlight) is perfect for sailboats. Customizable
configurations include more than 15 important marine parameters for
wind, speed and navigation. Installs easily, either flush or flat
mount. It can even wirelessly connect to a compatible chartplotter
or quatix® 3 GPS marine smartwatch to stream wind data directly to
your wrist. Also available in a GNX Wired Sail Pack.

Garmin GNX Wind Marine Instrument Features:

• Glass-bonded backlit monochrome LCD display lens avoids
  fogging
• Large, easy-to-read black digits on white or customizable
  background colors for high contrast and high visibility in all
  lighting conditions
• 2 data fields and a digital wind rose simultaneously display
  true and apparent wind data, Steer Pilot, boat speed and more
• Displays true and apparent wind speed and wind angles, true
  wind direction, boat speed, speed over ground, VMG, heading, course
  over ground and closed haul
• NMEA 2000® network and ANT technology interfaces

Specifications:

Display size	3.3 x 2.4; 4.0in diagonal
Display type	Standard LCD, monochrome
Water rating	IPX7
Input Voltage	9-16 V (from NMEA 2000)
Input Draw	0.35 W (day); 0.4 W (night)
Dimensions	110 x 115 x 30 mm (4.33” x 4.53” x 1.18”)

What’s in the Box:

• GNX Wind
• Trim piece snap cover
• Protective cover
• Flush mount gasket and hardware
• NMEA 2000® T-connector
• Installation instructions
• NMEA 2000 drop cable
• Documentation
