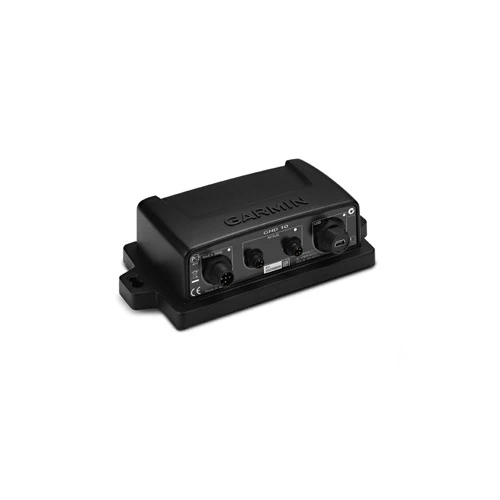

Garmin GND 10 Black Box Bridge

Converts data between the Nexus network and NMEA 2000

The Garmin GND 10 Black Box Bridge seamlessly
integrates Nexus instruments and sensors with the Garmin family. It
converts data between the Nexus Network and NMEA 2000 to provide
compatibility between Nexus and Garmin products, including gWind,
gWind Wireless and gWind Race transducers. Simple plug-and-play
installation between Nexus and NMEA 2000, with USB connectivity,
eliminates the need for user setup and system configuration.

GND 10 allows PC applications, such as NexusRace, Expedition,
Adrena or SeaTrack, to communicate sailing-specific functions
between Nexus and NMEA 2000 networks. It also enables GND 10
software updates over NMEA 2000. Existing NexusRace PC application
can be used to update software, configure and calibrate Nexus
devices over USB using the FDX protocol.

Garmin GND 10 Black Box Bridge Features:

• Converts data between the Nexus network and NMEA 2000
• Provides compatibility between Nexus and Garmin
  products
• Simple plug-and-play installation between Nexus, NMEA 2000 and
  USB
• No user setup or system configuration required
• Allows PC applications, such as NexusRace, Expedition, Adrena
  or SeaTrack, to communicate sailing-specific functions between
  Nexus and NMEA 2000 networks

Garmin GND 10 Black Box Bridge Specifications:

• Unit Dimension, WxHxD: 170 x 90 x 50 mm
• Weight: 196 g
• Waterproof: Yes (IPX7)
• Temp Range: From 5°F to 158°F (-15°C to 70°C)
• Voltage Range: 9-16 V
• Power Usage: 0.52 W
• Compass Safe Distance: 0.1 m
• Accuracy Angle: N/A
• Speed: N/A
• NMEA 2000 Load Equivalency Number (LEN): 4
• Wireless Connectivity: No

	Nexus to NMEA 2000	NMEA 2000 to Nexus
Apparent Wind Angle	Y	N
Apparent Wind Speed	Y	N
Boat Speed Through Water	Y	Y
Course Over Ground	N	Y
Course to Waypoint	N	Y
Cross Track Error	N	Y
Depth	Y	Y
Distance to Waypoint	N	Y
Latitude	N	Y
Longitude	N	Y
Magnetic Heading	Y	Y
Magnetic Variation	N	Y
Speed Over Ground	N	Y
True Heading	Y	Y
True Wind Angle	Y	N
True Wind Speed	Y	N
UTC Date	N	Y
UTC Time	N	Y
Water Temperature	Y	Y
Barometric Pressure	Y	N

What’s in the box:

• GND 10
• USB Mini-B cable
• NMEA 2000 drop cable (2 m)
• NMEA 2000 T-connector
• Nexus network cable (5 m; straight connector)
• Mounting hardware
• Documentation

Garmin GND 10 Black Box Bridge Installation Instructions
