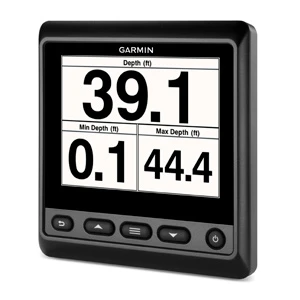

Garmin GMI 20 Digital Marine Instrument Display

Perfectly Designed for Power and Sail Vessels

The Garmin GMI 20 Digital Marine Instrument
Display is perfectly designed for both power and sail
vessels. Designed to clearly show depth, speed, wind and 100+
marine and vessel parameters, its large, bright 4-inch color
display with extra large digits is easy to read at a distance and
170 degree viewing angle.

Set Sail with Ease
A glass-bonded finish lens on the GMI 20 prevents fogging and
increases contrast. Daylight readability is enhanced with a high
contrast color scheme. For enhanced night visibility, you have a
choice of red/black, green/black or the normal night mode color
scheme along with a dimmer control. Screens can be set to
auto-scroll, cycling between pages automatically without your
having to do a thing. This is especially advantageous as it allows
you to install the GMI 20 in a greater variety of locations on the
vessel. Default profiles can be customized for powerboat, sailboat,
fishing, engine/fuel, plus several other user-specified profiles.
Power is supplied by the NMEA 2000 network.

In addition, the GMI 20 also features a dedicated race timer that
counts down and counts up, with an internal beeper. Included are 2
trim snap piece cover options which allow you to match the GMI 20
with the new GPSMAP 500/700 series, GPSMAP 8000 Glass Helm series
or legacy Garmin chartplotters.

Garmin GMI 20 Digital Marine Instrument Display
Features:

• Marine instrument display clearly shows depth, speed, wind and
  100+
• marine and vessel parameters
• Large, bright 4-inch color glass-bonded lens display with
  anti-glare finish
• Easy to read from a distance and 170 degree viewing
  angle
• Enhanced night time readability with backlight dimmer and full
  color or new red/black or green/black color schemes
• Enhanced daylight readability with new high contrast color
  option

Garmin GMI 20 Digital Marine Instrument Display
Specifications:

• Display Type: Glass-bonded, anti-glare colour TFT
• Screen Size: 4 in. diag.
• Horiz. Pixels: 320
• Vert. Pixels: 240
• Backlight: LED backlight, full colour, red/black,
  green/black
• Viewing Angle: 170°
• Functions: Depth, speed, wind, over 100 marine and vessel
  parameters
• Controls: Five buttons
• Weight: 8.71oz.
• NMEA Interface: NMEA 2000, NMEA 0183
• Voltage: 9-32V DC (NMEA 2000 input voltage: 9-16V)
• Draw: 200mA at 12V
• Waterproof Rating: IPX7
• Dimensions (WxHxD): 4.33 x 4.53 x 1.18 in
