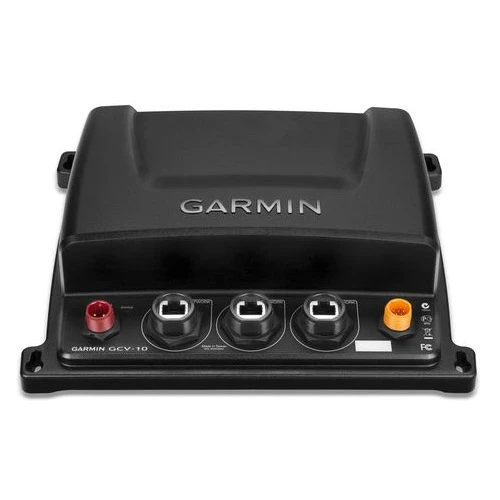

Garmin GCV10 ClearVu Black Box Scanning Sonar Module

Add SideVü/ClearVü Scanning Sonar to Your Compatible
Chartplotter

The Garmin GCV10 ClearVu Black Box Scanning Sonar
Module adds both SideVü and DownVü with CHIRP scanning
sonar technologies to your compatible Garmin echoMAP or GPSMAP
series combo (see compatible devices). CHIRP technology sweeps
through a range of frequencies to give you an ultra-clear sonar
picture of objects, structure and fish that pass below (DownVü) and
to the sides (SideVü) of the boat.

Together with your combo’s HD-ID sonar, you get an excellent search
and confirmation tool for advanced fishfinding in both fresh and
saltwater.

DownVu Scanning
DownVu gives you a nearly photographic sonar view of structure and
fish that pass below your boat. You can view DownVu scanning images
in conjunction with SideVu and your HD-ID sonar, or CHIRP sonar
images on the same screen.

SideVu Scanning
An excellent tool for scoping out a fishing area quickly, SideVu
provides a wide view of what lies off to either side of your boat.
You see a crystal clear image that makes it easy to identify
wrecks, structure, rocks and, yes, even the fish that are lurking
next to them. You can view SideVu scanning images in conjunction
with DownVu and your HD-ID sonar, or CHIRP sonar images on the same
screen.

Multiple Options
The GCV 10 is sold with and without a transducer. The version with
a transducer includes 12-pin DownVu/SideVu transom mount transducer
with fast response temperature sensor.

Garmin GCV10 ClearVu Black Box Scanning Sonar Module
Features:

• For use with compatible echoMAP and GPSMAP series
  combos
• Provides both DownVu and SideVu with CHIRP scanning sonar
  technology for a high-frequency, ultra-clear sonar picture of
  objects, structure and fish
• Includes 12-pin DownV/SideV transducer with fast response
  temperature sensor
• 3 network ports provided for advanced networking for multiple
  units

Garmin GCV10 ClearVu Black Box Scanning Sonar Module
Specifications:

• Unit dimensions, LxWxH: 9.9×7.6×2.6 (251 mm x 192 mm x 66
  mm)
• Weight: 1.86 lbs (845 g)
• Waterproof: yes (IPX7)
• Temperature range: From 5 degrees F to 158 degrees F (from -15
  degrees C to 70 degrees C)
• Power Input: 10-35 V
• Power Usage: 10.5 W maximum
• Fuse: 4.0 A
• Compass safe distance: 10.2 in. (26 cm)
• Sounder power: 500 W rms
• Frequency: 455/800 kHz (dependent on transducer)
• Depth: DownVu: 750 ft (229 m); SideVu: 500 ft (153 m)
• Data output: Garmin Marine Network

What’s in the box:

• GCV 10
• Right-angle power cable (20 ft)
• Right-angle network cable (6 ft)
• Right-angle transducer adapter cable
• Mounting hardware
• Documentation

Note: This listing does not come with a
transducer.
