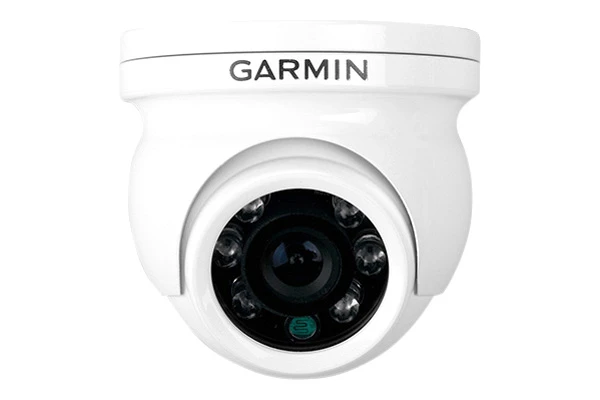

Garmin GC 10 Marine Camera

See more of your surroundings

You’ll be able to monitor areas inside and outside your boat while
you’re on the water using the Garmin GC 10 Marine
Camera as an extra set of eyes on your vessel. Whether
you’re backing out of a boat-filled marina or simply keeping tabs
on your engine room, you’ll have the information you need to make
decisions while on the move; it’s like being in two places at
once!

Focused on Convenience
Video from the Garmin GC 10 can be viewed via on-board televisions,
video monitors or compatible chartplotters that support video
input. That means you won’t have to add separate hardware that’s
device-specific to view your feed. The reverse-image cameras
reverse the video on your screen – perfect for backing out of tight
locations. And with infra-red functionality, you’ll be able to view
your surroundings in low-light conditions.

Built to Last
Durable and waterproof, the Garmin GC 10 is built to brave the
elements. It features a small and unobtrusive design in a rugged
housing that makes it easy to mount almost anywhere on your boat.
The GC 10 exterior is anodized with a powder-coated aluminum
housing that’s corrosion-resistant for long-term use. And it works
inside or outside – so you’ll have the flexibility to monitor a
variety of locations depending on your needs.

Garmin GC 10 Marine Camera Features:

• Acts as an extra set of eyes on your vessel
• Video output can be viewed via on-board televisions, video
  monitors or compatible chartplotters that support video
  input
• Features a small and unobtrusive design in a rugged
  housing
• Durable and waterproof

Garmin GC 10 Marine Camera Specifications:

• Image Sensor Device: 1/3 in. (8.5 mm) Sony Super HAD CCD
  camera
• Effective Pixels: 768 x 494 (NTSC), 752 x 582 (PAL)
• Scanning System: 2:1 Interlaced, 525 lines (NTSC), 625 lines
  (PAL)
• Sync System: Internal
• Resolution: 480 TV lines
• Video Output: VBS, 1.0V peak-to-peak, composite, 75
  ohms
• S/N Ratio: More than 48 dB (AGC off)
• Operating Temperature: From -20C to 60C
• Power Consumption: 80mA at 12Vdc (with LED on, 120 mA,
  maximum)
• Compass Safe Distance: 6 1/8 in. (155 mm)
• Waterproof rating: IP66
• Weight: 320g
• Dimensions (DxH): 60 x 57 mm
