Garmin EchoMap 50S 5” GPS/Fishfinder With G2 NZ/AU Chart

Find. Navigate. Dominate

The Garmin EchoMap 50S GPS/Fishfinder Combo uses a
brilliant 5-inch touch screen display to show your location with
pinpoint accuracy. It also features a built in high powered fish
finder, giving you accurate fish sign and clean view of the bottom.
The crystal-clear display provides clear target separation, allows
visibility both day and night, and has a user interface that anyone
can navigate. Plus, it has multi-touch functions and auto-dimming
to enhance your screen views. So whether you’re targeting Snapper
in shallow or heading out deep and jigging for Kingfish you can now
navigate your way and find the fish easier than ever before.

Super-fast 10 Hz GPS/GLONASS
With the integration of a 10Hz GPS/GLONASS receiver, the 50s
refreshes position and heading up to 10 times per second. It
displays constant and fluid on-screen location and proves to be
incredibly accurate when marking waypoints and navigating.

Advanced Echo HD-ID Sonar
In addition to the integrated receiver, echoMAP 50s also allows for
sonar recording. This feature coordinates the timing of the sonar
return in relation to the boat’s position — so every one of the
available 5,000 waypoints will be accurate and precise. It’s an
absolute must when locating and pinpointing the next hot fishing
spot.

Transducer and Wireless Connectivity

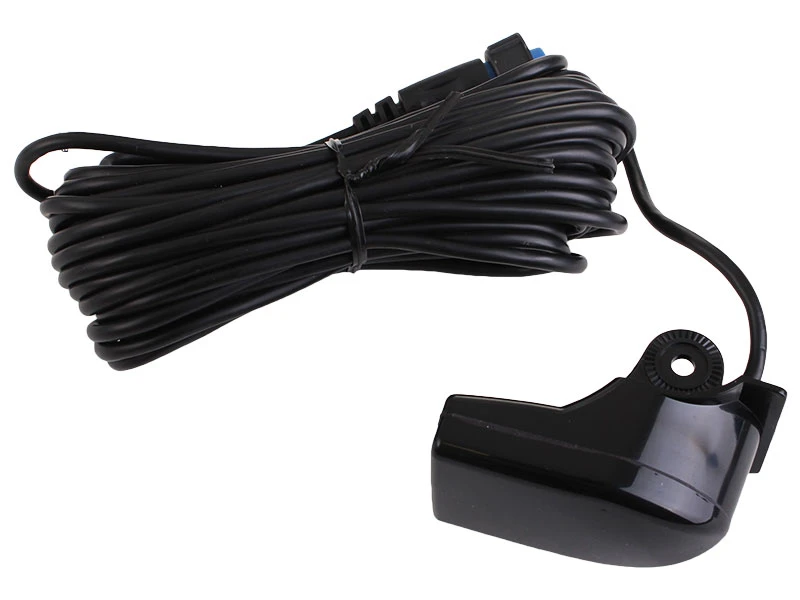

Included with echoMAP 50s is a dual-beam transducer that transmits
a 77/200 kHz signal. It also has wireless connectivity capability,
giving you the opportunity to connect and access marine-specific
apps via smartphone or tablet.

Garmin EchoMap 50S GPS Fishfinder Combo
Features:

• 5in VGA display
• Advanced Echo HD-ID Sonar
• 500W (77/200 kHz) transducer
• Super-fast 10 Hz GPS/GLONASS receiver
• Transducer and Wireless Connectivity

Garmin EchoMap 50S GPS Fishfinder Combo
Specifications:

• Dimensions (W x H x D): 5.9 x 6.1 x 2.4in (15.0 x 15.5 x
  6.1cm)
• Display size (W x H): 3.0 x 4.0in; 5.0in diagonal (7.6 x
  10.2cm; 12.7cm diagonal)
• Display resolution (W x H): 480 x 640 pixels
• Display type: VGA display
• Weight: 1.6lbs (0.7kg)
• Waterproof: Yes (IPX7)
• Receiver: 10Hz high-sensitivity
• Antenna: internal only
• Mounting options: Bail, flat or flush
• Power consumption: max power usage at 10 Vdc: 27 W; typical
  current draw at 12 Vdc 450 mA; max current draw at 12 Vdc: 2.7
  A

Maps and Memory Specifications:

• Accepts data cards: 2 microSD cards
• Waypoints: 5,000
• Routes: 100
• Track log: 50,000 points; 50 saved tracks

Sonar Specifications:

• Dual-frequency (50/200 kHz) sonar capable: Yes
• Dual-beam (77/200 kHz) sonar capable: Yes
• Frequencies supported: 50/77/200 kHz
• Transmit power: 500 W (RMS) / 4,000 W (peak to peak)
• CHIRP sonar technology: No
• Voltage range: 10-32 Vdc input
• Maximum depth: 1,900 ft fresh water, 700 ft salt water (depth
  capacity is dependent on water bottom type and other water
  conditions)
• Bottom lock (shows return from the bottom up): Yes
• Water temperature log and graph: Yes
• Sonar recording: Yes
• Sonar history rewind: Yes

Connections:

• NMEA 0183 input ports: 2
• NMEA 0183 output ports: 2
• Video input ports: None
• Video output ports: None
• Wireless connectivity: Yes
• Garmin Marine Network ports: None

Compatible with:

• Garmin Sonar compatible
• NMEA 0183 compatible
• Supports AIS (tracks target ships position)
• Supports DSC (displays position data from DSC-capable VHF
  radio)
• Tide tables
• BlueChart® Mobile (planning) compatible

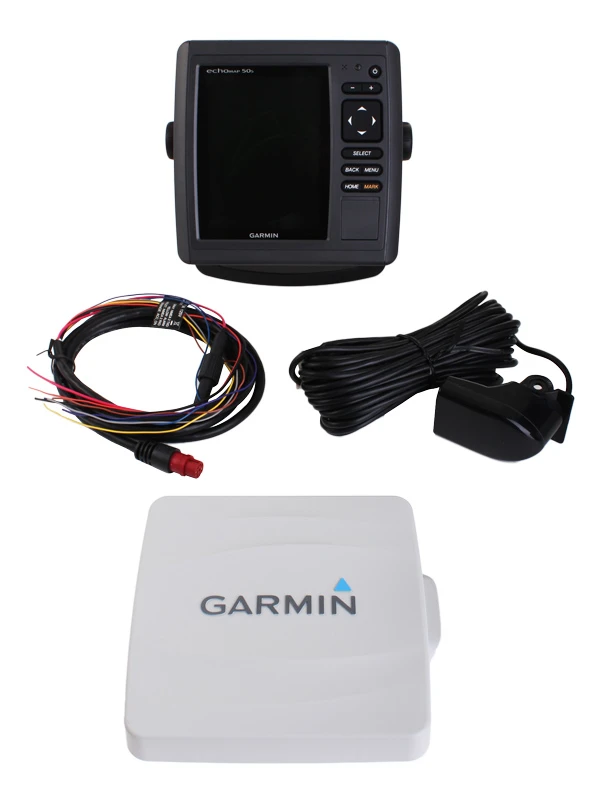

What’s in the box:

• EchoMap 50S

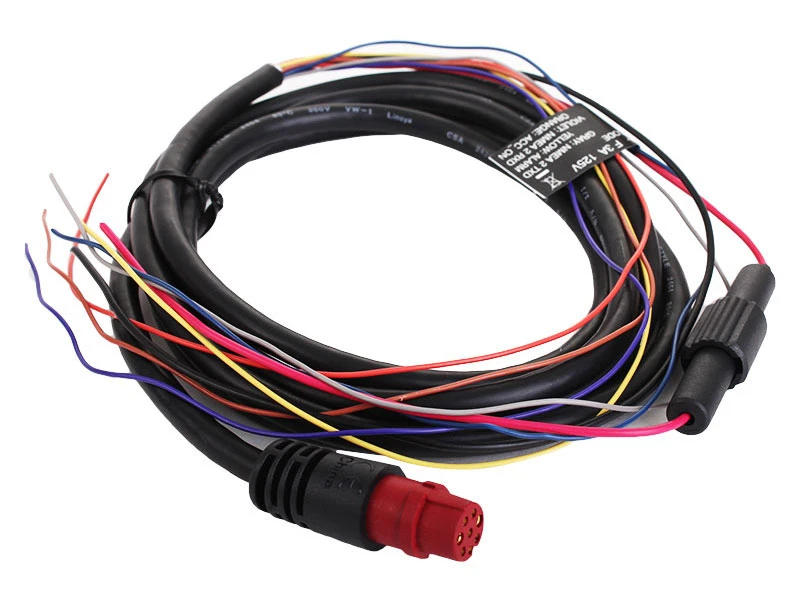

• Power/data cable or power/data/sonar cable
• Includes full G2 Chart covering New Zealand and Australia worth
  $299
• Tilt/swivel mount
• Flush mount kit
• Protective cover
• Bezel
• Documentation
