Control your steering system
The Garmin Class B Drive Unit Linear Drive works
with the GHP 12 Marine Autopilot System to control your sailboat’s
steering system. This device is designed for use with larger
sailboats with up to 79,000 lbs of displacement.

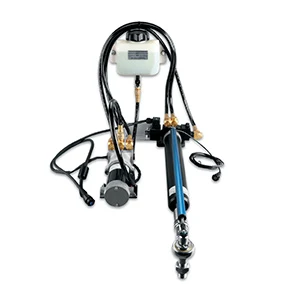

Garmin Class B Drive Unit Linear Drive
Features:
- Part number: 010-11573-00
- Designed for use with larger sailboats with up to 79,000 lbs of
displacement - Compatible with GHP 12 autopilot system
- Drive Unit Type: Hydraulic linear
- Stroke Length: 12″ (303 mm)
- Maximum Thrust: 2380 lb (1080 kg)
- Supply Voltage: 10V to 30V
- Average Clutch Current at 12V: 1 Amp
- Average Motor Current at 12V: 3-4 Amps
- Operating Temperature: -15 °C to 60 °C (5 °F to 140
°F)
Dimensions (WxHxD):
- Motor: 8.8″ x 3″ x 3.5″ (223 x 76 x 88 mm)
- Cylinder (centered): 32.7″ x 4.1″ x 6.3″ (830 x 105 x
160mm) - Reservoir: 7.9″ x 6.1″ x 3.3″ (200 x 155 x 85 mm)
Garmin Class B Drive Unit Linear Drive Installation
Instructions
